Removable Storage Solutions
Red Rock Technologies is a leading manufacturer of board level removable mass storage modules which provide fast field replacement to support rugged chassis systems such as VME, VPX, cPCI, ATCA, PCIe. Including SATA, NVMe, SCSI Storage Solutions.
VPX Storage
Product Name
Description
Other Features
Product
Name:

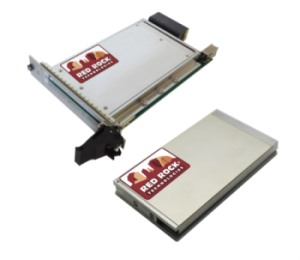

RRT-3UVPX-SATA-R
Description
3U VPX SATA Carrier with Removable Drive Module- SATA3 interface on VPX backplane per VITA65
- Removable module rated for 100,000 mating cycles
- Air or conduction cooled
- Capacities up to 2TB
- Options for discrete controlled secure erase
Other Features
Product
Name:
RRT-3UVPX-PCIe-R
Description
3U VPX PCIe Carrier with Removable Drive Module- PCIe Gen 2 x 2 interface to VPX backplane
- OpenVPX Thin Pipe (TP) storage module profile MOD-3-PER-1T-16/3/3/1 or 2
- 3U VPX Storage VITA 46, 47, 48, 65
- Provides boot disk and/or storage
- Conduction or air cooled version
- Rugged removable module connectors rated for 100,000 mating cycles
- Uses COTS 2.5" SATA drives for wide range of options
- Options for discrete controlled secure erase
- Robust design for extreme temperature, shock and vibration environments
- High performace SATA transfer rates up to 500 MB/s
- VxWorks™, Linux and Windows™ drivers available
Other Features
Product
Name:

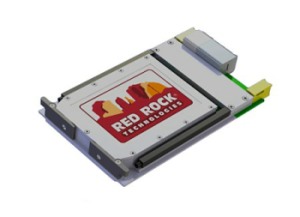

RRT-3UVPX-NVMe-R
Description
3U VPX NVMe Carrier with Removable Drive Module- PCIe Gen 3 x 4 interface to VPX backplane
- OpenVPX Fat Pipe (FP) storage module profile MOD-3-PER-1F-16.3.2.1 or 2
- 3U VPX Storage VITA 46, 47, 48, 65
- Provides boot disk and/or storage
- Conduction or air cooled version
- Rugged removable module connectors rated for 100,000 mating cycles
- Uses COTS U.2 NVMe SSDs for wide range of options
- Options for discrete controlled secure erase
- Robust design for extreme temperature, shock and vibration environments
- High performace NVMe transfer rates up to 2000 MB/s
- VxWorks™, Linux and Windows™ drivers available
Other Features
PMC/XMC Storage
Product Name
Description
Other Features
Product
Name:

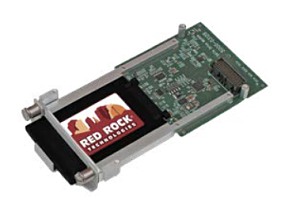

RRT-XMC-18S-R
Description
XMC 1.8" Removable SATA Drive Module- Front panel removable 1.8" SSD
- Uses COTS 1.8" SATA SSDs for a wide range of options
- Capacities currently up to 2TB
- High performance PCIe Gen2 SATA3 controller
- Backwards-compatible with SATA1 and SATA2
- Compatible with air cooled SBCs with an XMC slot
- Meets XMC VITA 42 height requirements
- For -X version all parts rated for -40C to 85C; no parts derating
- VxWorks®, Linux® and Windows® drivers available
Other Features
Product
Name:

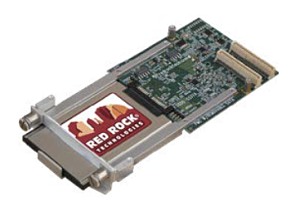

RRT-PMC-18S-R
Description
PMC 1.8" Removable SATA Drive Module- Front panel removable 1.8" SSD
- Uses COTS 1.8" SATA SSDs for a wide range of options
- Capacity of up to 2TB in a single PMC slot
- High performance PCIe Gen2 SATA3 controller
- Fast transfer rates
- Compatible with air cooled SBCs with a PMC slot
- Secured by rugged retainer clip
- VxWorks®, Linux® and Windows® drivers available
Other Features
Product
Name:

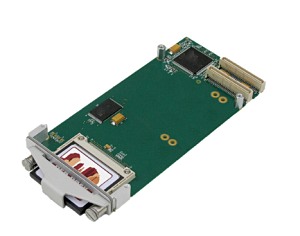

RRT-PMC-CF
Description
PMC Fixed/Removable Compact Flash Module- Uses COTS CompactFlash SSDs for a wide range of options
- Compatible with air cooled SBCs with a PMC slot
- Utilizes CompactFlash drives; one front removable and one fixed
- Capacity of up to 1TB in a single PMC slot (2x 512GB CF cards)
- Front panel removable option secured by rugged retainer clip
- VxWorks®, Linux® and Windows® drivers available
Other Features
SCSI Drives
Red Rock specialize in supporting legacy SCSI systems that use SCSI hard drives, SCSI SSDs (solid state drives), SCSI floppies, SCSI magneto optical (MO) drives and SCSI PC cards that are obsolete and cannot be replaced. We have proprietary FPGA based technology that we developed for use on our VME boards and has been honed over the years to provide maximum capability with a wide range of SCSI systems. We can analyze, troubleshoot, and provide custom firmware solutions for difficult SCSI systems.We replace a range of obsolete drives. Please check out our list of drives we replace if you're looking for a replacement drive and we will build a custom solution for you.
