Module based on the Intel® Stratix® 10 SoC FPGA

reflex-ces comxpress mpsoc som & carrier Intel® Stratix® 10 SoC FPGA

reflex-ces reflex-ces specialise in developing System on Module (SoM) and MultiProcessor System on Chip (MPSoC) modules and carrier cards.

The COMXpress SOM is a COM Express Basic form factor Module, providing an extremely high PCIe bandwidth through its 32-lane Gen3. It is based on an Intel® Stratix® 10 SoC FPGA.

This FPGA development board, is specially optimized for embedded applications thanks to its small size and its low-power consumption. The Stratix® 10 is one of the best-performing and latest FPGA families developed by Intel®. Delivering an unprecedented 2X core performance, up to 70% lower power (leading to lower power consumption), up to 10.2 million LEs, and the highest level of system integration, the Intel® Stratix® 10 microprocessor is uniquely positioned to address next-generation, high-performance systems in the most demanding applications. This semiconductor device is optimized for FPGA applications that require the highest transceiver bandwidth and core fabric performance.

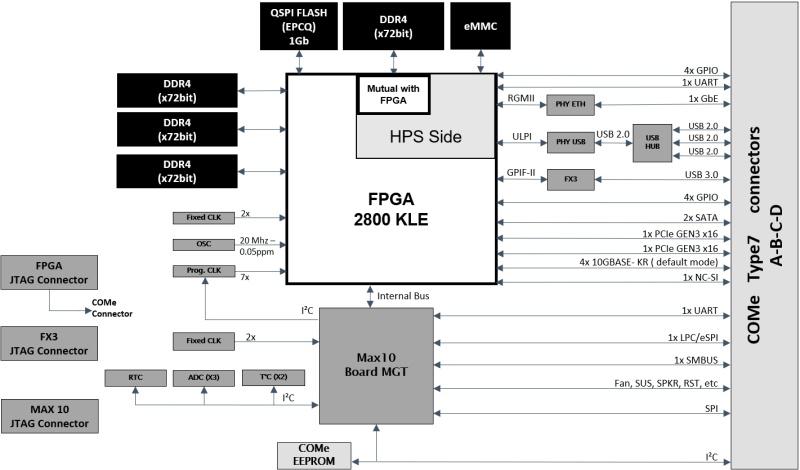

Block Diagram of ComXpress MPSoC Module

comxpress stratix 10 som block diagram

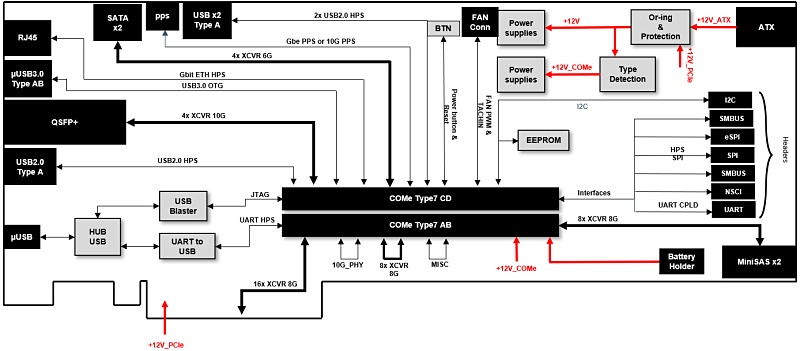

Block Diagram of ComXpress PCI Express Carrier

comxpress stratix 10 carrier block diagram
Click for a Quotation
Product Name:
Description:

Product Name: ComXpress SoM

ComXpress SoM

Description

The COMXpress Stratix® 10 SoC system-on-module is an FPGA development board

  • COM Express Basic form factor Module, Type 7 standard
  • Stratix® 10 SX (1SX280LN3F43I2VG) with ARMV8 (Integrated quad-core 64 bit ARM CortexA53 hard processor system up to 1.5 GHz embedded)
  • Ethernet 10/100/1000 Base-T (HPS)
  • 4x 10GbE base KR (default)
  • 2x Serial SATA revision 3.0, 6Gb/s
  • 3x USB2.0 HOST
  • 1x USB3.0
  • 1x SMB,I²C,UART
  • 8 GPIOs (4 FPGA + 4 HPS)
  • 2x PCI Express x16 (Gen 1, 2 or 3), end-point supported
  • 4x DDR4 banks, 16GByte total

Product Name: ComXpress Carrier

ComXpress Carrier

Description

The COMXpress Stratix® 10 SoC PCIe evaluation carrier board.

  • Fully compatible with the ComXpress Stratix® 10 SoC System-on-Module
  • Designed to use quickly in server platform with PCIe x16 lanes
  • High-speed link : Quad 10 GbE interface with Optical front end,PCIe 3.0, SATA3, Mini SAS, USB 3.0
  • Supplied with Schematics
  • Mechanical files (3D DWF/STEP models and 2D drawing) (upon request)
  • VHDL test designs (included top level) - only with COMXpress Stratix®10 SoC module
  • Linux BSP - only with COMXpress Stratix®10 SoC module
