System-on-Module based on Vulcan Versal™ Prime and AI Edge FPGA
reflex-ces specialise in developing System on Module (SoM) and MultiProcessor System on Chip (MPSoC) modules and carrier cards.
The Vulcan System-on-Module, is available in two versions, either with a Versal™ Prime (VM2022) FPGA or an AI Edge (VE2802) FPGA. This versatile platform combines AI processing, advanced connectivity, and optimized performance, making it an ideal choice for designing and deploying complex algorithms while integrating multiple functions on a single chip. It offers lower power consumption, enhanced system performance, and next-generation technology capabilities.
The system-on-module (SoM) is delivered with an active heatsink, complete with a heat spreader and fan, specifically tailored for embedded applications. Leveraging a SoM for your embedded system accelerates the design process and reduces time-to-market by offering pre-built, rigorously tested components for seamless system integration.
Target applications for the Vulcan Versal™ SoM span diverse markets such as Bioscience & Instrumentation, Quantum computing, AI Vision Analytics, Embedded Airbone Systems, Radar systems and Electronic Warfare.
The Vulcan Versal™ SoM is fully compatible with its carrier board, providing a complete and robust development solution.

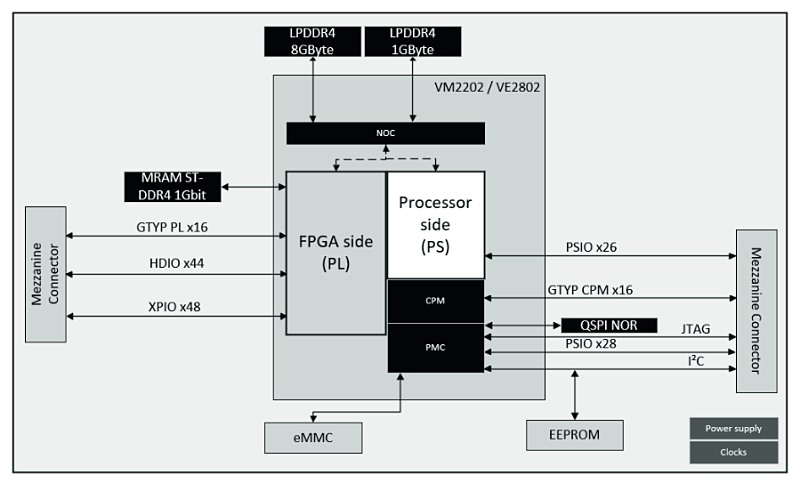

Block Diagram of Vulcan Systsem on Module (SoM)
Product Name:
Description:
Product Name: Vulcan SoM
Description
The Zeus Zynq® UltraScale+™ MPSoC System-on-Module
- AMD Xilinx® Versal™ Prime FPGA or AI Edge
- VM2202 / VE2802
- 2x PCIe Gen4 x8 End Point or Root Port
- Dual Core ARM Cortex A-72 and Dual Core ARM Cortex RSF
- 2x PCIe Gen4 x8 interfaces
- 44x HDIO + 48x XPIO
- 2x LP-DDR4, 1x MRAM ST-DDR4
- Industrial Temp Grade
