Reflective Memory - High Speed, Multicast
Dolphin's range of Reflective & Shared Memory products delivers low latency performance for real time applications such as simulation, test & measurement, high speed replication, and distributed video. They are suited to the deployment of high speed reliable networks where fast data collection and data replication is required. Typical applications can range from a two-node fail over pair to large DSM applications like aircraft, ship and submarine simulators, automated testing systems, industrial automation and high-speed data acquisition. Because of their inherent replication they are especially good for fault tolerance. [Reflective Memory & Multicast - Read More...]Super Sockets - High Speed, Low Latency
A PCI Express® network can replace local Ethernet networks with a higher speed lower latency network. The combination of Dolphin’s PCI Express® hardware and Dolphin’s SuperSockets™ delivers maximum application performance without necessitating application changes. SuperSockets™ is a unique implementation of the Berkeley Sockets API that capitalizes on the PCI Express® transport to transparently achieve performance gains for existing socket-based network applications. Dolphin Express hardware and the SuperSockets™ software layer create an ultra-low latency, high-bandwidth, low overhead, and high availability platform to support the most demanding sockets based applications. With support for both Linux and Windows Operating systems, new and existing applications can easily be deployed on a high performance PCI Express® network without any modifications. [SuperSockets for Linux - Read More...] [SuperSockets for Windows - Read More...]Shared Memory - Peer to Peer Transfers for GPUs and FPGAs, High Throughput, Low Latency

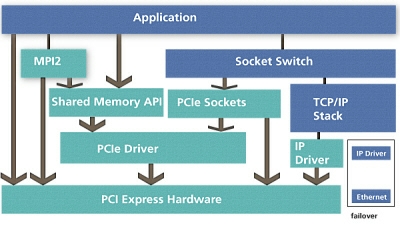

Dolphin’s Software Infrastructure Shared-Memory Cluster Interconnect (SISCI) API makes developing PCI Express® Network applications faster and easier. The SISCI API is a well established API for shared memory environments and can be used for both intra and inter system communication. the SISCI API enables PCI Express® based applications to use distributed resources like CPUs, I/O, and memory. The resulting application features reduced system latency and increased data throughput. [SISCI API - Read More...]High Speed Data Transfers - Transfer of Large Data Sets

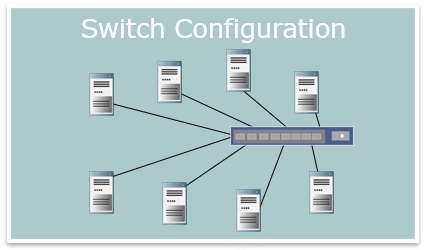

If you need to tranfer large data sets and currently use 10 Gigabit Ethernet, a PCI Express Network may be the right choice for you. PCI Express networks are high speed local area networks for connecting two or more systems. Once connected developers can use existing sockets applications or TCP/IP commands to move data between machines with the benefit of higher throughput and lower latency. There are various uses for a PCI Express Network. It can be used to transfer files, create high availability systems with a redundant node, create offloads backup of data without in shorter time periods. Distributed Replicated Block Device (DRBD) is an example of using a PCI Express network to create a high availablity application. Dolphin's PCI Express solution delivers significant improvements in DRBD transaction throughput and latency and provides the best possible combination of performance, scalability and application security through replication.Device Lending - Share Network Resources (NVMe's, FPGA's, GPU's)
Dolphin eXpressWare SmartIO software offers a flexible way to enable PCIe IO devices (NVMes, FPGAs, GPUs etc) to be accessed within a PCIe Network. Devices can be borrowed over the PCIe network without any software overhead at the performance of PCI Express. Device Lending is a simple way to reconfigure systems and reallocate resources. GPUs, NVMe drives or FPGAs can be added or removed without having to be physically installed in a particular system on the network. The result is a flexible simple method of creating a pool of devices that maximizes usage. Since this solution uses standard PCIe, it don’t add any software overhead to the communication path. Standard PCIe transactions are used between the systems. Dolphins eXpressWare software manages the connection and is responsible for setting up the PCIe Non Transparent Bridge (NTB) mappings. [Device Lending - Read More...]

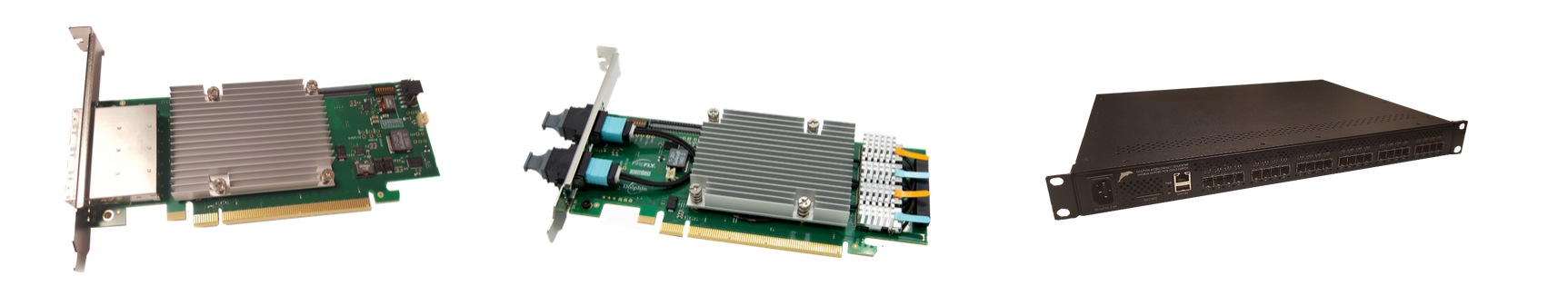

Example PCIe Gen 3 Products
Product Name
Description
Description
The PXH830 Gen3 PCI Express NTB Host Adapter is a high performance cabled interface to external processor subsystems. Based on Broadcom®
Gen3 PCI Express bridging architecture, the PXH830 host adapter includes advanced features for non-transparent bridging (NTB) and clock isolation.
The PXH830 card have a standard Quad SFF-8644 connector and uses standard MiniSAS-HD cables.
- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- 0.5 microsecond latency
- 128 Gbit/s Performance
- Supports copper and fibre cable connections
Description
The PXH832 Gen3 PCI Express Host Adapter is our high performance cabled interface to external IO subsystems. Based on Avago® Gen3 PCI Express
bridging architecture, the PXH832 Transparent Host and Target adapter includes advanced features for transparent bridging (TB), host and clock isolation. The
PXH832 card utilizes a quad SFF-8644 connector and can use standard MiniSAS-HD or the new PCIe 3.0 cable currently being standardized by the PCI-SIG.
- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- 138 nanosecond latency
- Transparent bridging
- 128 Gbit/s Performance
- Supports copper and fibre cable connections
Description
The MXS824 is a high-end PCI Express Gen3 Switch. This 24 port 1U cluster switch delivers 32 GT/s of non-blocking bandwidth per port at ultra low latency.
Up to 4 ports can be combined into a single x16 / 128 GT/s port if higher bandwidth is required. Each connection is fully compliant with PCI Express Gen1, Gen2
and Gen3 I/O specifications.
- 24 Gen3 x4 PCI Express ports
- Gen3 8 GT/S per lane
- 32 GT/s per port
- Supports copper and fibre cable connections
- SFF-8644 Connectors
Example PCIe Gen 4 Products
Product Name
Description
Description
The MXH930 PCIe 4.0 NTB Host Adapter is a high performance clustering product. Based on Microchip Switchtec® Gen4 PCI Express bridging
architecture, the MXH930 host adapter includes advanced features for non-transparent bridging (NTB) and clock isolation.
- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- 0.5 microsecond latency
- 256 Gbit/s Performance
- Supports copper and fibre cable connections
Description
The MXH932 PCIe 4.0 Host/Target Adapter is a high performance transparent solution for connecting servers to external I/O subsystems.
Based on Microchip® Gen4.0 PCI Express bridging architecture, the MXH932 adapter enables reliable transparent PCIe cable connections and
clock isolation.
- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- less 100 nanosecond latency
- 256 Gbit/s Performance
- Supports copper and fibre cable connections
Description
The MXS924 is a high-end PCI Express Gen4 Switch. This 24 port 1U cluster switch delivers 64 GT/s of non-blocking bandwidth per port
at ultra low latency. Up to 4 ports can be combined into a single x16 / 256 GT/s port if higher bandwidth is required. Each connection is
fully compliant with PCI Express 1.0, 2.0, 3.0 and 4.0 I/O specifications. The MXS924 is based on the latest Microchip Switchtec PCIe Gen 4
PFX fanout switch technology.
- 24 Gen4 x4 PCI Express ports
- Gen4 16 GT/S per lane
- 32 GT/s per port
- Supports copper and fibre cable connections
- Non-transparent clustering switch
- SFF-8644 Connectors
Description
Dolphin’s 3U MXP924 PXIe / CompactPCI Express Switch card is a powerful building block for PXIe systems. The PCIe 4.0 board enables PXIe systems
to connect to servers, other PXIe, CompactPCI Serial or and IO expansion systems. Combined with the PCIe Host card MXH932, the MXP924 enables servers
and embedded systems to connect to PXIe systems utilizing full PCIe Gen4 wire speed. Multi-chassis configurations can be set up by daisy chaining several
MXP924 boards or connecting two MXP924 directly to a MXH932.
- 24 Gen4 PCI Express ports
- 16 GT/s per port
- Supports copper and fibre cable connections
Example PCIe Gen 5 Products
Product Name
Description
Description
The MXH530 PCI Express Gen 5.0 NTB Host Adapter is a high performance clustering product. Based on Microchip Switchtec® PCIe 5.0 bridging
architecture, the MXH530 host adapter includes advanced features for non-transparent bridging (NTB) and clock isolation.
- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- 0.5 microsecond latency
- 512 Gbit/s Performance
- Supports copper and fibre cable connections
Description
The MXH532 PCIe 5.0 Host/Target Adapter is a high performance transparent solution for connecting servers to external I/O subsystems. Based on
Microchip® Gen 5.0 PCI Express bridging architecture, the MXH532 adapter enables reliable transparent PCIe cable connections and clock isolation.
- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- Supports copper and fibre cable connections
Description
The MXS524 is a high-end PCI Express Gen5 Switch. This 24 port 1U cluster switch delivers 128 GT/s of
non-blocking bandwidth per port at ultra low latency. Up to 4 ports can be combined into a single x16 / 512 GT/s port if higher bandwidth is required.
Each connection is fully compliant with PCI Express 1.0, 2.0, 3.0, 4.0 and 5.0 I/O specifications. The MXS524 is based on the latest Microchip Switchtec
PCIe Gen 5 PFX fanout switch technology.
- 24 Gen5 x4 PCI Express ports
- Gen5 32 GT/S per lane
- 128 GT/s per port
- Non-transparent clustering switch
- SFF-8644 Connectors
Product Name
Description
Description
The PXH830 Gen3 PCI Express NTB Host Adapter is a high performance cabled interface to external processor subsystems. Based on Broadcom® Gen3 PCI Express bridging architecture, the PXH830 host adapter includes advanced features for non-transparent bridging (NTB) and clock isolation. The PXH830 card have a standard Quad SFF-8644 connector and uses standard MiniSAS-HD cables.- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- 0.5 microsecond latency
- 128 Gbit/s Performance
- Supports copper and fibre cable connections
Description
The PXH832 Gen3 PCI Express Host Adapter is our high performance cabled interface to external IO subsystems. Based on Avago® Gen3 PCI Express bridging architecture, the PXH832 Transparent Host and Target adapter includes advanced features for transparent bridging (TB), host and clock isolation. The PXH832 card utilizes a quad SFF-8644 connector and can use standard MiniSAS-HD or the new PCIe 3.0 cable currently being standardized by the PCI-SIG.- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- 138 nanosecond latency
- Transparent bridging
- 128 Gbit/s Performance
- Supports copper and fibre cable connections
Description
The MXS824 is a high-end PCI Express Gen3 Switch. This 24 port 1U cluster switch delivers 32 GT/s of non-blocking bandwidth per port at ultra low latency. Up to 4 ports can be combined into a single x16 / 128 GT/s port if higher bandwidth is required. Each connection is fully compliant with PCI Express Gen1, Gen2 and Gen3 I/O specifications.- 24 Gen3 x4 PCI Express ports
- Gen3 8 GT/S per lane
- 32 GT/s per port
- Supports copper and fibre cable connections
- SFF-8644 Connectors
Product Name
Description
Description
The MXH930 PCIe 4.0 NTB Host Adapter is a high performance clustering product. Based on Microchip Switchtec® Gen4 PCI Express bridging architecture, the MXH930 host adapter includes advanced features for non-transparent bridging (NTB) and clock isolation.- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- 0.5 microsecond latency
- 256 Gbit/s Performance
- Supports copper and fibre cable connections
Description
The MXH932 PCIe 4.0 Host/Target Adapter is a high performance transparent solution for connecting servers to external I/O subsystems. Based on Microchip® Gen4.0 PCI Express bridging architecture, the MXH932 adapter enables reliable transparent PCIe cable connections and clock isolation.- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- less 100 nanosecond latency
- 256 Gbit/s Performance
- Supports copper and fibre cable connections
Description
The MXS924 is a high-end PCI Express Gen4 Switch. This 24 port 1U cluster switch delivers 64 GT/s of non-blocking bandwidth per port at ultra low latency. Up to 4 ports can be combined into a single x16 / 256 GT/s port if higher bandwidth is required. Each connection is fully compliant with PCI Express 1.0, 2.0, 3.0 and 4.0 I/O specifications. The MXS924 is based on the latest Microchip Switchtec PCIe Gen 4 PFX fanout switch technology.- 24 Gen4 x4 PCI Express ports
- Gen4 16 GT/S per lane
- 32 GT/s per port
- Supports copper and fibre cable connections
- Non-transparent clustering switch
- SFF-8644 Connectors
Description
Dolphin’s 3U MXP924 PXIe / CompactPCI Express Switch card is a powerful building block for PXIe systems. The PCIe 4.0 board enables PXIe systems to connect to servers, other PXIe, CompactPCI Serial or and IO expansion systems. Combined with the PCIe Host card MXH932, the MXP924 enables servers and embedded systems to connect to PXIe systems utilizing full PCIe Gen4 wire speed. Multi-chassis configurations can be set up by daisy chaining several MXP924 boards or connecting two MXP924 directly to a MXH932.- 24 Gen4 PCI Express ports
- 16 GT/s per port
- Supports copper and fibre cable connections
Example PCIe Gen 5 Products
Product Name
Description
Description
The MXH530 PCI Express Gen 5.0 NTB Host Adapter is a high performance clustering product. Based on Microchip Switchtec® PCIe 5.0 bridging
architecture, the MXH530 host adapter includes advanced features for non-transparent bridging (NTB) and clock isolation.
- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- 0.5 microsecond latency
- 512 Gbit/s Performance
- Supports copper and fibre cable connections
Description
The MXH532 PCIe 5.0 Host/Target Adapter is a high performance transparent solution for connecting servers to external I/O subsystems. Based on
Microchip® Gen 5.0 PCI Express bridging architecture, the MXH532 adapter enables reliable transparent PCIe cable connections and clock isolation.
- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- Supports copper and fibre cable connections
Description
The MXS524 is a high-end PCI Express Gen5 Switch. This 24 port 1U cluster switch delivers 128 GT/s of
non-blocking bandwidth per port at ultra low latency. Up to 4 ports can be combined into a single x16 / 512 GT/s port if higher bandwidth is required.
Each connection is fully compliant with PCI Express 1.0, 2.0, 3.0, 4.0 and 5.0 I/O specifications. The MXS524 is based on the latest Microchip Switchtec
PCIe Gen 5 PFX fanout switch technology.
- 24 Gen5 x4 PCI Express ports
- Gen5 32 GT/S per lane
- 128 GT/s per port
- Non-transparent clustering switch
- SFF-8644 Connectors
Product Name
Description
Description
The MXH530 PCI Express Gen 5.0 NTB Host Adapter is a high performance clustering product. Based on Microchip Switchtec® PCIe 5.0 bridging architecture, the MXH530 host adapter includes advanced features for non-transparent bridging (NTB) and clock isolation.- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- 0.5 microsecond latency
- 512 Gbit/s Performance
- Supports copper and fibre cable connections
Description
The MXH532 PCIe 5.0 Host/Target Adapter is a high performance transparent solution for connecting servers to external I/O subsystems. Based on Microchip® Gen 5.0 PCI Express bridging architecture, the MXH532 adapter enables reliable transparent PCIe cable connections and clock isolation.- One x16 PCIe edge port
- Four x4 PCIe cable ports
- Quad SFF-8644 Connectors
- Supports copper and fibre cable connections
Description
The MXS524 is a high-end PCI Express Gen5 Switch. This 24 port 1U cluster switch delivers 128 GT/s of non-blocking bandwidth per port at ultra low latency. Up to 4 ports can be combined into a single x16 / 512 GT/s port if higher bandwidth is required. Each connection is fully compliant with PCI Express 1.0, 2.0, 3.0, 4.0 and 5.0 I/O specifications. The MXS524 is based on the latest Microchip Switchtec PCIe Gen 5 PFX fanout switch technology.- 24 Gen5 x4 PCI Express ports
- Gen5 32 GT/S per lane
- 128 GT/s per port
- Non-transparent clustering switch
- SFF-8644 Connectors

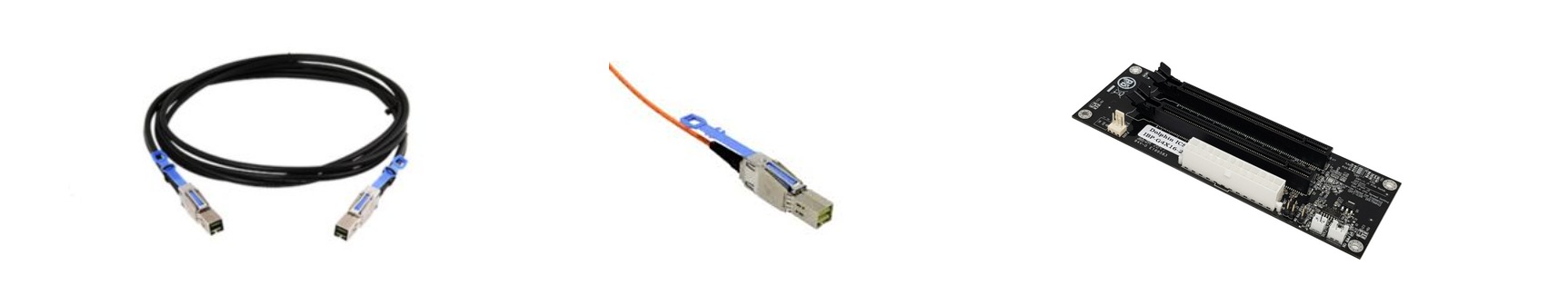

Example PCIe Cables and Backplanes
Product Name
Description
Product
Name:
2 Slot, 3 Slot & 5 Slot Backplanes
2 Slot, 3 Slot & 5 Slot Backplanes
Contact us for details
Description
Dolphin’s PCIe backplanes enable customers to establish remote access to a PCIe device.
- IBP-G4X16-2 Backplane - 2 slot x16 Gen 4
- IBP-G4X16-3 Backplane - 3 slot x16 Gen 4
- IBP-G4X16-5 Backplane - 5 slot x16 Gen 4
Product
Name:
SFF-8644 copper cables
SFF-8644 copper cables
Contact us for details
Description
Dolphin's adapter cards utilize standard SFF-8644 cable connectors for copper and fibre cable assembly connectivity. All the Dolphin cables are
compliant to the PCI-SIG External Cabling Specification 3.0 cables (PCIe 4.0). The PCIe 4.0 cables can be provided with/without Cable Management
Interface (CMI) used for sideband signaling.
Example Software
Product Name
Description
Product
Name: Reflective Memory Software Kit
Reflective Memory
Reflective Memory Software Kit
Reflective Memory
Description
Dolphin offers a complete software suite for shared memory computing.
- SuperSockets Sockets API for Linux
- SuperSockets Sockets API for Windows
- SISCI Shared Memory API Developers Kit
- Reflective Memory Software Kit
- Fast File Transfer
- Optimized TCP IP drivers
Product Name
Description
Product
Name:
2 Slot, 3 Slot & 5 Slot Backplanes
2 Slot, 3 Slot & 5 Slot Backplanes
Contact us for details
Contact us for details
Description
Dolphin’s PCIe backplanes enable customers to establish remote access to a PCIe device.- IBP-G4X16-2 Backplane - 2 slot x16 Gen 4
- IBP-G4X16-3 Backplane - 3 slot x16 Gen 4
- IBP-G4X16-5 Backplane - 5 slot x16 Gen 4
Product
Name:
SFF-8644 copper cables
SFF-8644 copper cables
Contact us for details
Contact us for details
Description
Dolphin's adapter cards utilize standard SFF-8644 cable connectors for copper and fibre cable assembly connectivity. All the Dolphin cables are compliant to the PCI-SIG External Cabling Specification 3.0 cables (PCIe 4.0). The PCIe 4.0 cables can be provided with/without Cable Management Interface (CMI) used for sideband signaling.
Product Name
Description
Product
Name: Reflective Memory Software Kit
Reflective Memory
Reflective Memory Software Kit
Reflective Memory
Reflective Memory
Description
Dolphin offers a complete software suite for shared memory computing.- SuperSockets Sockets API for Linux
- SuperSockets Sockets API for Windows
- SISCI Shared Memory API Developers Kit
- Reflective Memory Software Kit
- Fast File Transfer
- Optimized TCP IP drivers
