Ultra Wideband Data Capture - Agilex 9 RF SoC
ApisSys specialise in developing high performance 3U VPX FPGA processing solutions for high speed data conversion, designed for high end data acquisition and signal processing applications.
ApisSys combine the latest leading edge technologies to deliver best in class capabilities for typical applications including Defence (Electronic Warfare systems, Wide band Radar), High Energy Physics, Medical Imaging (Digital X-Ray image enhancement).
RF Direct Sampling for Enhanced Performance and Scalability

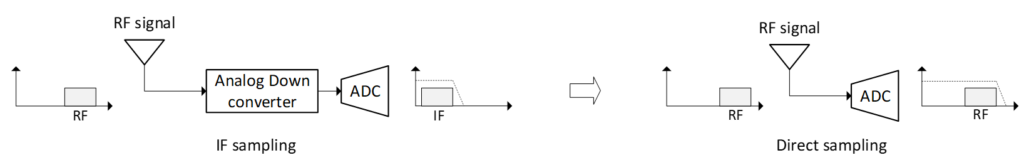

Recent advancements in data converter technologies have led to a substantial increase in sampling rates, opening up the potential to achieve a bandwidth of several tens of gigahertz using the most recent ADCs and DACs. Many applications involving RF
digitization use a method known as intermediate frequency (IF) sampling, where the analog signal is first converted to a lower intermediate frequency before being sampled by a converter. Increasing sampling rates now allows for direct sampling of the
RF signal without the need for additional RF conversion stages, even for signals in the tens of gigahertz range. This approach, known as direct sampling, is now applicable to a wide range of radar and EW frequency bands, including the Ku, K, and Ka bands.
This RF direct sampling method can greatly simplify architectures and enhance the flexibility, scalability, and SWAP-C of equipment.
The AV153 integrates an Altera® Agilex® 9 SoC FPGA with Direct-RF, providing high-performance processing capabilities coupled with direct radio frequency (RF) functionality, enabling seamless integration of FPGA-based processing and RF operations.
The board is part of apissys’ range of Ultra Wideband Radar / ECM / SIGINT solutions based on the VITA47 ECC3, VPX standard.
Product Name:
Description:
Description

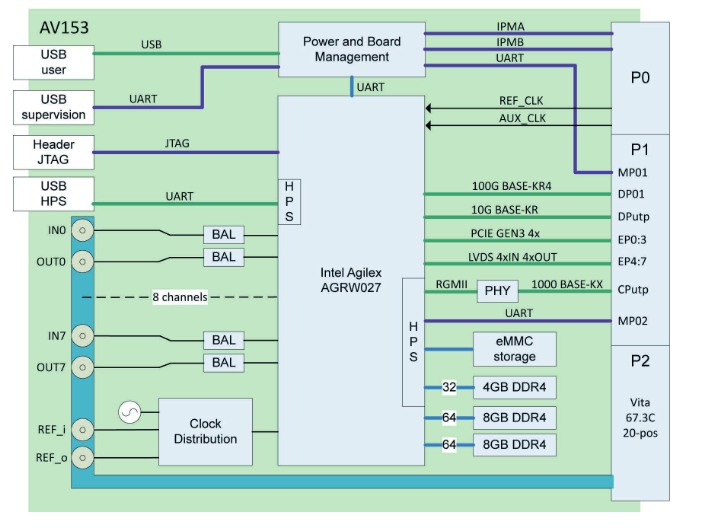

The AV153 3U VPX board combines 8x 10-bit ADCs up to 64 Gsps, 8x 10-bit DACs up to 64 Gsps, and an analog bandwidth up to 20 GHz, offering outstanding performance for demanding applications. Fully aligned with the SOSA standard, the AV153 supports a variety of communication protocols, including PCIe, Gigabit Ethernet and a large number of user-defined I/O.
- Eight channels 64Gsps 10-bit ADC - Eight channels 64Gsps 10-bit DAC
- with Direct-RF SOC Intel® Agilex® 9 AGRW027 FPGA
- SOSA Aligned
- Suited to Ultra Wideband Radar / ECM / SIGINT applications
