Module based on the Intel® Altera® Arria® 10 SoC FPGA
reflex-ces specialise in developing System on Module (SoM) and MultiProcessor System on Chip (MPSoC) modules and carrier cards.
The Achilles SoM is a system-on-module, based on the Intel® Arria® 10 SoC FPGA, and is available in three different versions according to the FPGA, memory, and connectors needed.
Featuring an ARM dual-core Cortex-A9 MPCore and up to 660 KLEs of advanced low-power FPGA logic elements, the Arria® 10 SoC combines the flexibility and ease of programming of a CPU with the configurability and parallel processing power of an FPGA.
This System On Module is also available in a Development Kit : The Achilles DevKit. This Arria ® 10 SoC development kit will provide you with schematics, reference designs and a starter board. The PCIe Carrier Board is an optional extra product compatible with all reflex ces Arria® 10 SoC SOMs.
Block Diagram of Achilles Carrier and MPSoC Module
FPGA Development Kit:
reflex-ces also provide dev kits as a getting started package including PCIe card, schematics and reference designs to start working. The Achilles Arria® 10 SoC development kit has a range of interfaces according to your needs. This starter kit can be used as an evaluation board to start testing your design, reducing your time to market. It can also be used as a dev board for prototyping.
Product Name:
Description:
Product Name: Achilles SoM
Description
The Achilles IIntel® Arria® 10 SoC FPGA System-on-Module
- Intel® Arria® 10 SX 270 or 660 KLE
- PCIe GEN3 x8
- Dual ARM® Cortex™ A9
- 228 SE IOs total (113 LVDS)
- 24 transceivers up to @12Gbps
- 2x DDR4 banks, 8GByte total
- Commercial & Industrial Temp
Product Name: Achilles Carrier
Description
The Achilles PCIe Carrier Board
- Fully compatible with the Achilles Arria® 10 SoC SoM board
- PCIe Gen3 x8
- SFP+ connectors
- Designed to be embedded

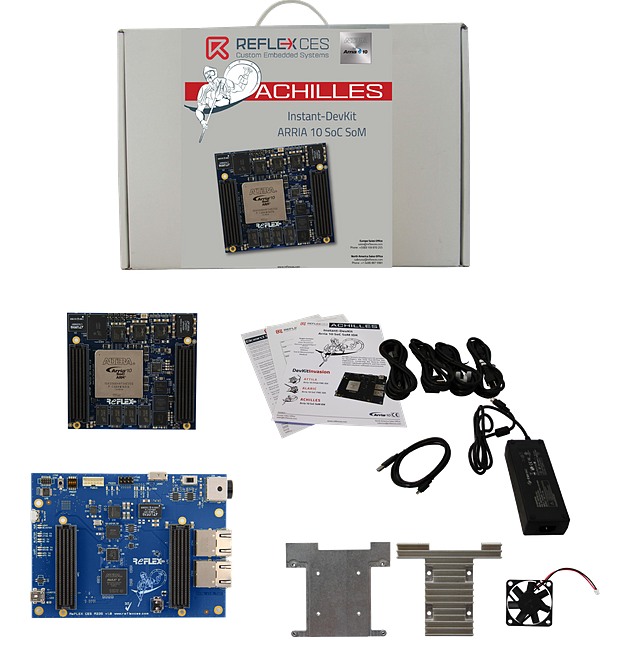

Product Name: Achilles Dev Kit
Description
Achilles Instant-DevKit comprises the Arria® 10 SoC SoM plus a Starter board for quick prototyping and application testing
- Ultra compact form factor 86 x 95mm (3.4x3.8 inches)
- Superior signal integrity
- Support for multi-Gigabit serial protocols, including PCIe Gen3 and 10G Ethernet
- Based on the Turbo version of the Arria® 10 SoC module
- Comprehensive reference designs available provided with source code
- Standard Linux Debian support, allows seamless porting of existing application software
