reflex-ces PCIE boards based on Intel® FPGA and Xilinx® FPGA
Altera® Agilex™ 7 I-Series, Altera® Arria 10, Stratix® 10 & AMD Virtex® UltraScale+™
reflex-ces specialise in developing high performance PCIe cards based on Intel® and Xilinx® FPGA's. They are suited to a wide variety of embedded applications. and can be provided with an SoC FPGA to increase processing capabilities. The SoC is an integrated circuit inside the FPGA, most often a CPU (central processing unit) processor, that allows the FPGA to better control the board. There is a wide range of options to meet various needs for logic density, memory size, power, interfaces etc. All optimized to fit your requirements especially where low-latency is required.
FPGA Development Kit:
reflex-ces also provide dev kits as a getting started package including PCIe card, schematics and reference designs to start working. Development cards offer primary interfaces, connectors and components, such as numerous transceivers, NOR flash and DDR4 memory, external additional RDIMM memory, high-speed links, and more. Target markets include high-performance computing and IP and ASIC prototyping.
Altera® Agilex™ 7 I-Series
Product Name
Description
Product Name: XpressSX AGI-FH401G
Description
PCIe Gen5 Network Processing board, featuring the Agilex™ I-Series SoC FPGA and 400 GB Ethernet- PCIe Full-height, half-length card
- Optimized for bandwidth-intensive applications that require a high-performance processor interface
- Supported by the CXL™ standard interface, the PCIe Gen5 x16 interface, and transceiver tiles with data rates of up to 116 Gbps
- Intel® Agilex™ I-Series SoC FPGA
- Quad Core ARM® Cortex® A53
- 2700 KLE
- 400GbE (8 x 58G) - Designed for SmartNIC applications
- 3x DDR4 banks, up to 72GB
- 4x HSI connectors (2x PCIe Gen5 x16 EP/RP, 1x CXL™ EP compatible)
Altera® Arria® 10 Series
Product Name
Description
Product Name: XpressGX A10-LP1150T
Description
Low-profile PCIe Altera Arria 10 GX 1150 KLE board Featuring 80G Ethernet- Designed for ultra low latency applications
- PCIe Gen3 x8 interface
- 4 GB DDR4 (1x 72bits)
- Up to 72 MB QDR2+ (4x 18bits)
- Dual QSFP+ cages 10/40 GbE ports
- 16x transceiver expansion port
Product Name: XpressGX A10-LP1151B
Description
Low-profile PCIe Altera Arria 10 GX 1150 KLE board Featuring 40G Ethernet- Optimized for FPGA applications that require high transceiver bandwidth and core fabric performance
- PCIe Gen3 x8 interface
- 8 GB DDR4 (1x 72bits)
- Up to 72 MB QDR2+ (4x 18bits)
- Dual QSFP+ cages 10/40 GbE ports
- 16x transceiver expansion port
Altera® Stratix® 10 Series
Product Name
Description

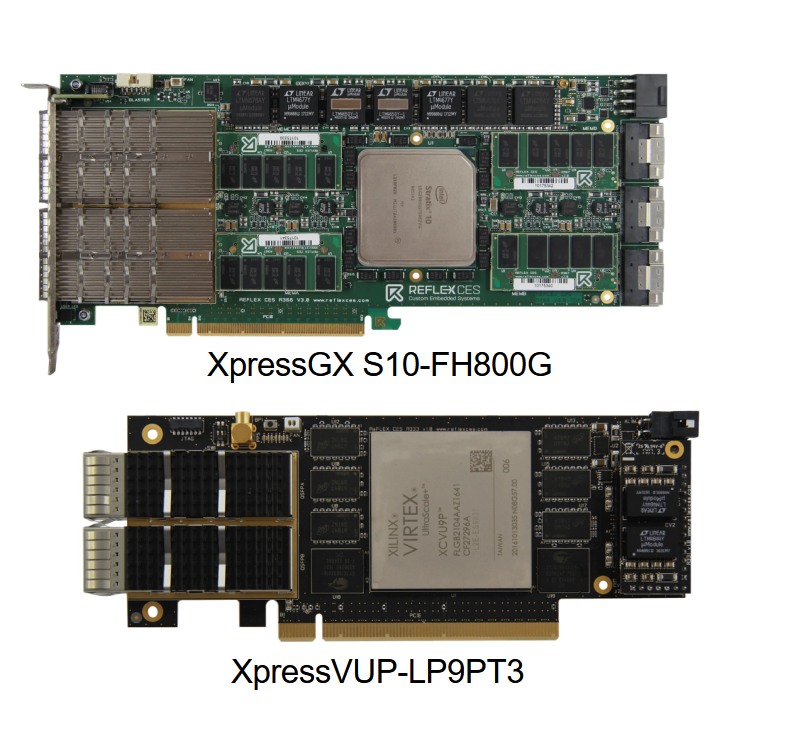

Product Name: XpressGX S10-FH800G
Description
Full height profile PCIe Network Processing FPGA board- Designed for Acceleration and Low latency applications
- PCIe Gen3 x16
- 4 independent memory banks compatible DDR4 and QDR2+
- 4 QSFP-DD optical cages, 10/25/40/100 GbE
- Board Management Controller (BMC)
- 3 Ultraport Slim SAS connectors for storage solution
Product Name: XpressGX S10-FH201G
Description
Full height profile PCIe Network Processing FPGA board- Designed for Acceleration and Low latency applications
- PCIe Gen3 x16
- 3 independent banks on board DDR4
- 2 independent banks on board QDR2+Xtrem
- Dual QSFP28 optical cages, 10/25/40/100 GbE ports
- 200G board to board capability (FireFly)
- Board Management Controller (BMC)
- IO and transceiver extension connectors

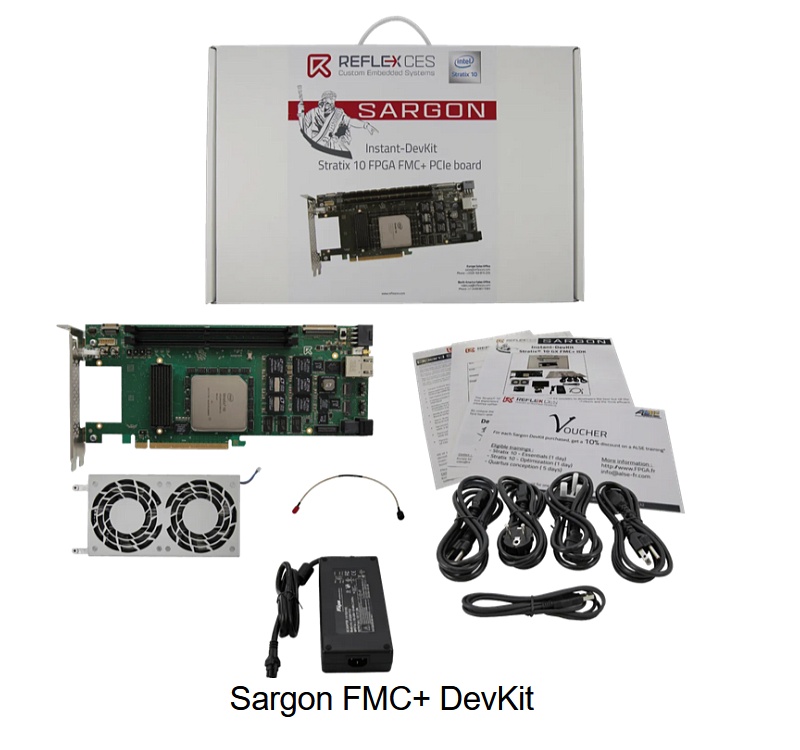

Product Name: Sargon FMC+ DevKit
Description
The Stratix® 10 GX FMC+ Instant-Development Kit- Provides developers the best Out-Of-The box experience and Best-In Class compact hardware platform
- Intel® Stratix® 10 GX 2800 KLEs
- PCIe Gen3 x16
- Board Management Controller (BMC) for monitoring, NOR Flash and clock programming
- 1x FMC+ (VITA57.4) with 20 XCVR up to 28Gb/s
- GPIO extension connector : 9 LVDS usable as 18 LVCMOS
- XCVR extension connector : 10 XCVR, 8 LVDS, Clock In&Out
AMD Virtex® UltraScale+™
Product Name
Description
Product Name: XpressVUP-LP5/9PT2
Description
Low-profile PCIe board using Virtex™ Ultrascale+™ VU5P or VU9P FPGA- Designed for Acceleration and Low latency applications
- PCIe Gen3 x16
- 4 independent memory banks compatible DDR4 and QDR2+
- 4 QSFP-DD optical cages, 10/25/40/100 GbE
- Board Management Controller (BMC)
- 3 Ultraport Slim SAS connectors for storage solution
Product Name: XpressVUP-LP9PT3
Description
Low-profile PCIe board using Virtex™ Ultrascale+™ VU9P-3 FPGA- Designed for Acceleration and Low latency applications
- PCIe Gen3 x16
- 3 independent banks on board DDR4
- 2 independent banks on board QDR2+Xtrem
- Dual QSFP28 optical cages, 10/25/40/100 GbE ports
- 200G board to board capability (FireFly)
- Board Management Controller (BMC)
- IO and transceiver extension connectors
Product Name: XpressVUP-LP9PI
Description
Conduction cooled heat spreader, equipped with a low-profile PCIe Virtex Ultrascale+ VU9P FPGA board- Provides developers the best Out-Of-The box experience and Best-In Class compact hardware platform
- Intel® Stratix® 10 GX 2800 KLEs
- PCIe Gen3 x16
- Board Management Controller (BMC) for monitoring, NOR Flash and clock programming
- 1x FMC+ (VITA57.4) with 20 XCVR up to 28Gb/s
- GPIO extension connector : 9 LVDS usable as 18 LVCMOS
- XCVR extension connector : 10 XCVR, 8 LVDS, Clock In&Out
