System-on-Module based on AMD Zynq® Ultrascale+™ MPSoC FPGA

reflex-ces specialise in developing System on Module (SoM) and MultiProcessor System on Chip (MPSoC) modules and carrier cards.

The Zeus Zynq® UltraScale+™ MPSoC is a system-on-module, based on the AMD ZU11EG/ZU19EG Zynq® UltraScale+™ MPSoC FPGA. With an innovative ARM® + FPGA architecture, the Zynq® Ultrascale+™ FPGA is smarter and optimized for differentiation, analytics and control. Its large portfolio of SW and HW design tools and reference designs enables you to easily develop any project.

The MPSoC UltraScale+™ FPGA provides multiprocessing capabilities for embedded applications including software defined radio, radar systems, electronic warfare, high-precision measurement, and much more.

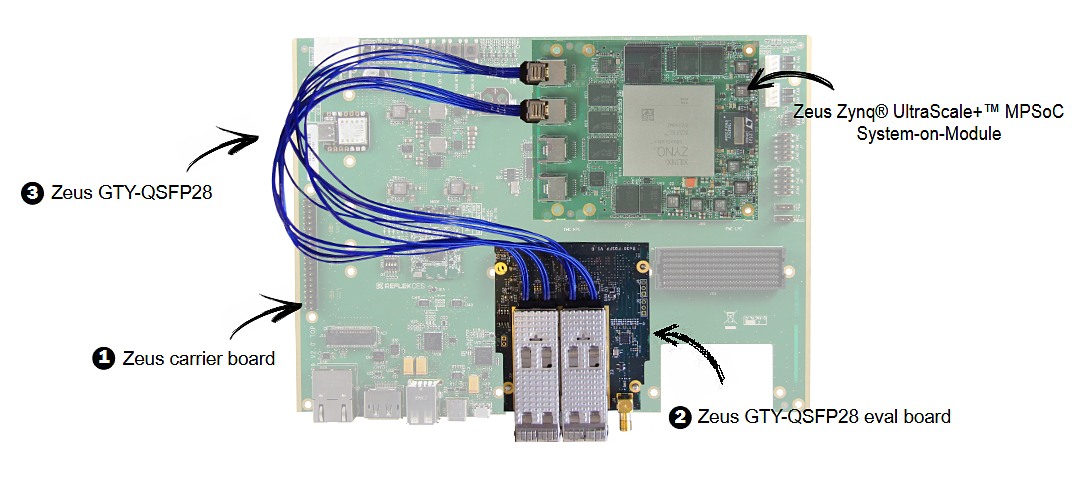

The Zeus Zynq® UltraScale+™ module is fully compatible with the Zeus carrier board. This is an evaluation board fitted with Dual FMC+ connectors and is supplied with the following:

• Board Support Package
• Starter Guide, Module and carrier board Reference Manuals
• HDL Test Designs by interface (Vivado 2020.2 version)
• 100G Ethernet MAC HDL Test Design
• Linux Kernel & Linaro optimized distribution, U-boot bootloader, Test scripts
• Mechanical drawings, assembly files
• Interconnect pinout file
• Carrier board schematics, Carrier board Design Guide

Product Name: Zeus MPSoC

Description

The Zeus Zynq® UltraScale+™ MPSoC System-on-Module

• PCIe Gen2 x4 Root Complex
• PCIe Gen3 x16 End Point
• Quad-Core ARM Cortex-A53
• 304 SE IOs total (96 LVDS)
• 16 GTY @25.78Gbps (Top side)
• 32 GTH @12.5Gbps (Bottom side)
• 3x DDR4 banks, 16GByte Total
• Industrial Temp Grade

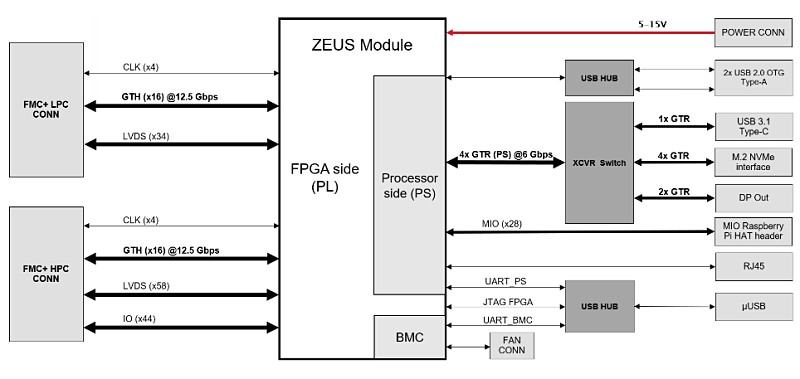

Product Name: Zeus Carrier

Description

The Zeus Carrier Board

• FMC+ HPC: 16 transceivers @12.5Gbps, 58x LVDS, 44x SE
• FMC+ LPC: 16 transceivers @12.5Gbps, 34x LVDS
• 1x GbE, I2C, SPI
• 2x USB2.0 Type-A, USB3.1 Type-C, DP Out
• 28x MIO: 2 x 20 position reade
• M.2 NVMe interface (M.2 NVMe drive not provided)
• RTC battery holder
• On-board E2PROMS (BMC I2C, PS I2C)
