Rugged Network Switch

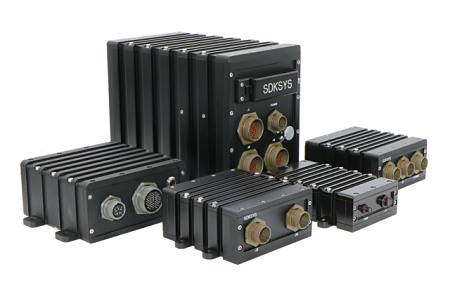

SDK Embedded Systems small form factor Rugged Network Switches are designed for use in harsh environments.

These SWaP optimised, rugged network switches are fully managed standalone Ethernet Switches contained in a sealed IP67 (dust and waterproof) chassis with rugged connectors.

General Environmental Specs

• Operating Temp: -25C to 70C & -40C to 85C
• Water proof & dust proof, anti-corrosion housing
• MIL-STD-810F Environmental compliance
• MIL-STD-461E EMC compliance

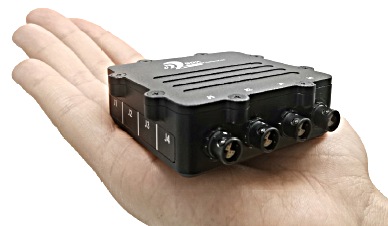

Product Name: SW-4PRS

Description

The SW-4PRS is an ultra compact switch with IP68 Ingress Protection.

• External dimensions only 71 x 75 x 24mm
• 4 port 10/100/1000BASE-T
• Layer 2/3 managed Gigabit Ethernet switch
• RS-232 Serial Interface (CLI)
• Fischer Minimax Series miniature connectors (support 5,000 mating cycles)
• Power : (5 - 36 VDC)
• Power Consumption: 1W idle, 3.3W at full data rate

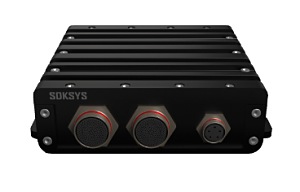

Product Name: SD-12PRSM

Description

The SD-12PRSM is a fully managed standalone Ethernet Switch.

• External dimensions only 182 x 227 x 73mm
• 12 port 10/100/1000BASE-T
• Layer 2/3 managed Gigabit Ethernet switch
• RS-232 Serial Interface (CLI)
• D38999 connectors
• Power : (9 - 36 VDC)
• Power Consumption: 25W

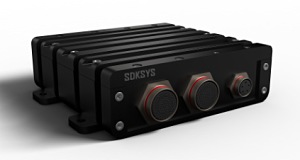

Product Name: SD-36PR10GS

Description

The SD-36PR10GS provides high density, high port count Layer 2 switching and Layer 3 routing with 10G uplinks - a total of 36 switchable ports.

• External dimensions only 160 x 170 x 72mm
• 4 x 10G, 8 x 1G (SGMII)
• 24 x 1G (Copper 10/100/1000Mbps) ports
• Layer 2/3 managed Gigabit Ethernet switch
• RS-232 Serial Interface (CLI)
• D38999 connectors
• Power : (9 - 36 VDC)
• Power Consumption: 13.6W idle, 6W at full data rate
