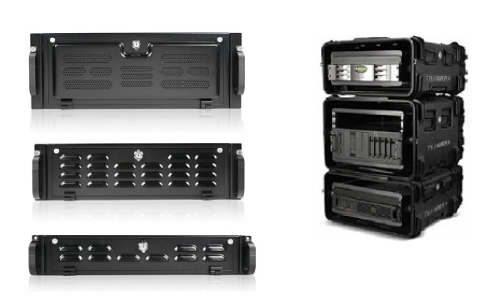

Rackmount Rugged Servers
SDK Embedded Systems rack mounted rugged servers provide the latest state-of-the-art high-performance commercial computing solutions in a rugged chassis suited for deployment in harsh environments.
These rackmounted servers can be combined as a workstation package in a rugged transit case and configured with Monitor, keyboard & mouse, built-in hot swappable multi-terabyte redundant storage
and redundant power supplies to provide secure backup of data while in the field.
Product Name
Description
Other Features

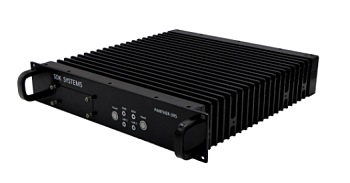

Product Name: SD-RX12S2U
Description
2U Rackmount Military Rugged Server RX12 Series- Dual Socket LGA 2011 R3 support Intel Xeon processor E5-2600 v3 series
- Supports DDR4 2133/1866/1600 LR DIMM, Registered, ECC DIMM and NV DIMM, 8 x DIMM
- Supports 10 x SATA3 6.0 Gb/s by INTEL C612, 2 xminiSAS HD connectors by LSI3008
- Supports 2 PCIe3.0x 16, 1 PCIe 3.0 x8
- Integrated IPMI 2.0 and KVM with Dedicated LAN
- Support 2x 10GLAN by Intel X540
- Shock & Vibration : MIL-STD-810G Compliant
- EMC : MIL-STD-461F Compliant
- MIL-DTL-38999 Type Connectors
Other Features
- Anti-vibration drive cage design
- 1.6mm SGCC heavy-duty cold-rolled steel
- Removable air filter
- Front access USB 2.0
- Redundant Power Supply compatible
- Built in 3x 3.5"/2.5" HDD/SSD drive (hot swap)
- Options for Additional SSD Storage
- Spill proof bezel with Lock
Product Name: SD-RX12S3U
Description
3U Rackmount Military Rugged Server RX12 Series- As above with additonal SSD storage options
Other Features
- As above

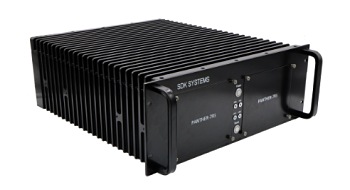

Product Name: SD-RX12S4U
Description
4U Rackmount Military Rugged Server RX12 Series- As above with additonal SSD storage options
Other Features
- As above
