Rugged Panel PCs

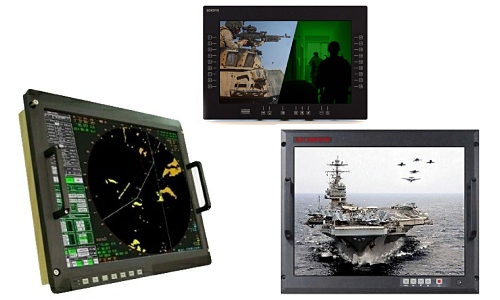

SDK Systems manufactures a range of Rugged Panel PC solutions designed for harsh environments where low EMI and long-term vibration resilience are essential criteria. Rugged LCD display sizes range from 8.4" to 57” format.
Rugged Panel PCs
Product Name
Description
Description

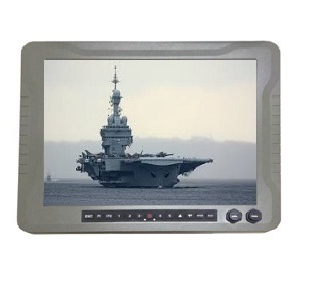

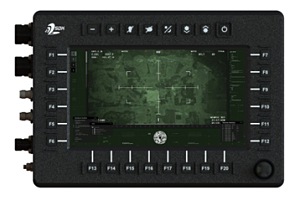

- 10.4” / 12.1" / 13.3" Multi Functional Panel PC sizes
- i7-1185GRE (up to 4.40 GHz) Quad Core Processor
- Up to 64GB RAM
- Up to 2TB SSD
- 2 x Canbus (Optional)
- Touch Panel and 24 programmable bezel keys
- 1 x HDMI (DVI Optional)
- 2 x USB 2.0 / 3.0, 2 x GbEthernet, 2 x RS232/422/485
- AC (or DC) Power Input
- MIL-STD-810G : Vibration, Shock, Temperature Shock, Salt Fog, Atmosphere Pressure
- MIL-STD-461F : Compliance to CE102, RE102, CS101, CS104, CS116
Product
Name:
SD-15RPC-MIL
Description

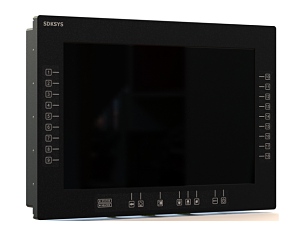

- 15” TFT LCD Panel PC
- Intel® Core i7-7600U 2.80GHz
- Up to 16GB RAM
- mSATA SSD 64GB up to 2TB
- 1 x USB 2.0, 2 x Ethernet, 2 x RS232
- 1 x VGA or HDMI
- AC Power Input
- MIL-STD-810G : Vibration, Shock, Temperature Shock, Salt Fog, Atmosphere Pressure
- MIL-STD-461F : Compliance to CE102, RE102, CS101, CS104, CS116
Other Features
Description

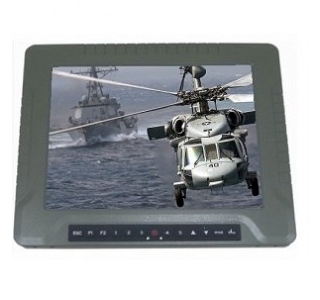

- 19” TFT LCD Panel PC
- Intel® Haswell Core™ i7 4xxx series Processor, frequency higher than 3.0Ghz
- Up to 8GB RAM
- SSD 256GB
- 3 x USB 2.0, 2 x GbEthernet, 2 x RS232/422/485
- DC Power Input
- MIL-STD-810G : Vibration, Shock, Temperature Shock, Salt Fog, Atmosphere Pressure
- MIL-STD-461F : Compliance to CE102, RE102, CS101, CS104, CS116
Product
Name:
SD-24WSPC-MIL
Description
- 24” TFT LCD Panel PC
- Intel® Skylake U-series 6th Generation Core i7-6600U 2.6GHz
- Up to 16GB RAM
- 1 x 2.5” SSD or 1 x mSATA SSD
- 4 x USB 2.0, 4 x GbEthernet, 2 x RS232, 2 x RS232/422/485
- DC Power Input
- MIL-STD-810G : Vibration, Shock, Temperature Shock, Salt Fog, Atmosphere Pressure
- MIL-STD-461F : Compliance to CE102, RE102, CS101, CS104, CS116
Other Features
Product
Name:
SD-24WRPC-CV
Description

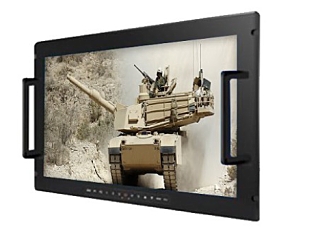

- 24” TFT LCD Panel PC
- Intel® KabyLake Core i7-7820EQ CPU
- Intel® QM175 Chipset Integrated
- Nvidia GeForce GT 1030
- Up to 16GB RAM
- 1 SSD 256GB up to 1TB
- Intel® i210 Ethernet Controller, Intel® i219 PHY Ethernet Controller
- I/O (D38999 Connectors)
- Serial: 2 x RS232/RS422/RS485
- USB: 4 x USB 2.0 (2x USB 3.0 optional)
- Ethernet: 2 x RJ45 GbE LAN
- VGA: 1 x VGA Output (DVI, HDMI optional)
- DC Power Input
- Qualification tested: MIL-STD-810 and MIL-STD-461
- Compliance with: MIL-STD-704, MIL-STD-1399
