Pentek FMC Carriers & FMC Modules (Virtex-7 FPGA)


Pentek
Pentek's Virtex-7 FPGA based family of FMC (FPGA Mezzanine Card) Carriers and FMC Modules (for data acquisition, software radio and digital signal processing), combine the high performance of the Virtex-7 with the flexibility of the FMC data converter, creating a complete radar and software radio solution.

Virtex-7 Processor and FMC Carrier


pentek FMC carriers and modules

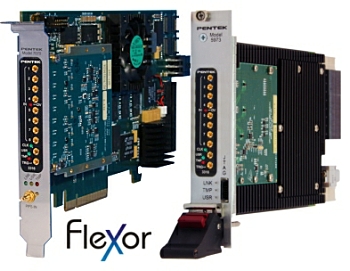

The Flexor Models 5973 & 7070 feature a high pin-count VITA 57.1 FMC site, 4 GB of DDR3 SDRAM, PCI Express (Gen. 1, 2 and 3) interface up to x8, optional user-configurable gigabit serial I/O and optional LVDS connections to the FPGA for custom I/O.

It delivers new levels of I/O performance by incorporating the emerging VITA 66.4 standard for half size MT optical interconnect, providing 12 optical duplex lanes to the backplane. With the installation of a serial protocol, the VITA-66.4 interface enables gigabit backplane communications between boards independent of the PCIe interface.

The Flexor FMC carriers come preconfigured with a suite of built-in functions for data capture, synchronization, time tagging and formatting, all tailored and optimized for specific FMC modules.


FMC Carriers

Product Name
Description
Form Factor

Product Name: Model 5973

Description

Flexor Virtex-7 Processor and FMC Carrier with optional user-configurable gigabit serial interface and VITA-57.1 FMC site with access to a wide range of possible I/O
  • Virtex-7 (VXT)
  • 4GB DDR3 SDRAM
  • PCIe (Gen 1,2 & 3) interface upto x8
  • LVDS connections to V7 FPGA for custom I/O
  • Advanced reconfigurability features

Form Factor

3U VPX

Product Name: Model7070

Description

Flexor Virtex-7 Processor and FMC Carrier with optional user-configurable gigabit serial interface and VITA-57.1 FMC site with access to a wide range of possible I/O
  • Virtex-7 (VXT)
  • 4GB DDR3 SDRAM
  • PCIe (Gen 1,2 & 3) interface upto x8
  • LVDS connections to V7 FPGA for custom I/O
  • Advanced reconfigurability features

Form Factor

PCIe


Flexor FMC (FPGA Mezzanine Card) Modules


pentek FMC carriers and modules


Pentek's FMC (FPGA Mezzanine Card) modules have a high pin-count FMC connector which matches the new Virtex-7 FPGA carrier, boosting performance levels and adding flexibility.


FMC Modules

Product Name
Description

Product Name: Model3312

Description

VITA 57 FMC compatible with sample clock synchronization to an external system reference
  • 4-Ch. 250 MHz, 16-bit A/D
  • 2-Ch. 800 MHz, 16-bit D/A

Product Name: Model3316

Description

VITA 57 FMC compatible with sample clock synchronization to an external system reference
  • 8-Ch. 250 MHz, 16-bit A/D

Product Name: Model3324

Description

VITA 57 FMC compatible with sample clock synchronization to an external system reference
  • 4-Ch. 500 MHz, 16-bit A/Ds
  • 4-Ch. 2 MHz, 16-bit D/As

Product Name: Model3320

Description

VITA 57 FMC compatible with sample clock synchronization to an external system reference
  • Featuring Texas Instruments (TI) ADC32RF45
  • 2-Ch. 3.0 GHz, 14-bit A/Ds
  • 2-Ch. 2.8 GHz, 16-bit D/As
  • Two digital downconverters
  • Two digital upconverters
