Mission Computers

High performance mission computer
SDK Embedded Systems
SDK Embedded Systems small form factor Mission Computers are designed for UAV and other mission-critical airborne applications.

These high performance SWaP optimised, rugged mission computers are based on the latest generation of Intel Core-i7 processors and chipsets (including NVIDIA Pascal GPU Architecture). Despite the very small physical dimensions, this is a fully featured processing platform with a removable storage option and a range of interfaces.


Product Name
Description
Other Features

Product Name: SD-A87RMG

Description

The SD-A87RMG is ideal in space constrained applications where high performance data processing and removable storage are required.

  • External dimensions only 220 x 188 x 90mm
  • 3Kg Weight
  • CPU : Intel® Whiskey lake® Quad Core 8th Generation Core i7
  • 1x mSATA SSD 128GB - system boot
  • Removable 2.5” SSD storage
  • 2x Independent video output - VGA & HDMI
  • 4x USB 3.0/2.0
  • 2x GbEthernet (4x optional)
  • 2x RS232
  • 2x RS422/485
  • 16x GPIO
  • 1x Power (9 - 36 VDC)
  • Typical Power Consumption : 25 - 30 W depending on configuration
  • Optional GPIO, WLAN, DVI, Audio and other interfaces
  • MIL-STD-810F Environmental compliance
  • MIL-STD-461E EMC compliance

Other Features

  • Powerful Intel® Whiskey lake U-series 8th Generation Core i7-8665UE 4.40GHz
  • DDR4-2400 up to 32GB SDRAM
  • Intel SoC Integrated Chipset
  • System Indicators : Power, HDD, Temperature
  • Rugged IP67 water proof & dust proof, anti-corrosion housing

Product Name: SD-AR7PW

Description

The SD-AR7PW is ideal in space constrained applications where high performance data processing is required.

  • External dimensions only 220 x 188 x 90mm
  • 4Kg Weight
  • CPU : Intel® Haswell® 4th Generation Core i7
  • 1 x mSATA SSD 128GB
  • 2x Independent video output - VGA & DVI
  • 6x USB 2.0
  • 4x GbEthernet
  • 2x RS232/RS422/RS485
  • 1x Audio output
  • 2x SMA Antenna (optional)
  • 1x Power (18 - 32 VDC)
  • Typical Power Consumption : 25 - 30 W depending on configuration
  • Optional GPIO, WLAN, WWAN, Display Port, Audio and other interfaces
  • MIL-STD-810F Environmental compliance
  • MIL-STD-461E EMC compliance

Other Features

  • Intel® Haswell 4th Generation Core i7-4650U 1.7Ghz processor
  • DDR3L 1600MHz 16GB SDRAM
  • Intel SoC Integrated Chipset
  • System Indicators : Power, HDD
  • Rugged IP67 water proof & dust proof, anti-corrosion housing

Product Name: SD-7RP95GPU

Description

The SD-7RP95GPU is a High Performance Embedded Computer (HPEC), based on NVIDIA Maxwell GPU Architecture.

With access to 640 NVIDIA CUDA™ cores, the GeForce GTX 950M delivers unsurpassed graphics, video, and GPU computing performance. It is ideal in performance driven applications where high performance graphics, video, and GPU computing performance is required.

  • CPU : Intel® 6th Generation Core / Xeon® E3 v5 Family Processor
  • Up to 32GB dual channel ECC DDR4 memory at 2133MHz
  • 4x Independant video outputs, DisplayPort/HDMI/DVI (build level options)
  • Up to 2TB Sold State Storage in removable cannister
  • 2x GbEthernet
  • 2x RS232/RS422/RS485
  • 4x USB 3.0 and 4x USB 2.0
  • 1x Power (18 - 36 VDC)
  • DVI/HDMI , HD-SDI and 4 x Composite inputs (build level options)
  • MIL-STD-810F Environmental compliance
  • MIL-STD-461E EMC compliance

Other Features

  • NVIDIA® GeForce™ GTX 950M (640 CUDA Cores)
  • miniPCIe slot for optional WiFi or 4G Modem
  • Remote control via serial port to turn on/off the power or reset the whole system
  • Rugged IP67 water proof & dust proof, anti-corrosion housing
  • NVIDIA® GeForce™ GTX 950M

Description

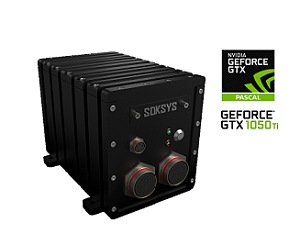

The SD-7RP1050GPU is a High Performance Embedded Computer (HPEC), based on NVIDIA Maxwell GPU Architecture.

With access to 768 NVIDIA CUDA™ cores, the GeForce GTX 1050Ti delivers unsurpassed graphics, video, and GPU computing performance. It is ideal in performance driven applications where high performance graphics, video, and GPU computing performance is required.

  • CPU : Intel® 6th Generation Core / Xeon® E3 v5 Family Processor
  • Up to 32GB dual channel ECC DDR4 memory at 2133MHz
  • 6x Independent video outputs ,DisplayPort/HDMI/DVI (build level options)
  • Up to 2TB Sold State Storage in removable cannister
  • 2x GbEthernet
  • 3x RS232, 2x RS485
  • 4x USB 3.0 and 6x USB 2.0
  • GPIO 4 in/ 4 out
  • 1x Power (18 - 36 VDC)
  • DVI/HDMI , HD-SDI and 4 x Composite inputs (build level options)
  • MIL-STD-810F Environmental compliance
  • MIL-STD-461E EMC compliance

Other Features

  • NVIDIA® GeForce™ GTX 1050Ti (768CUDA Cores)
  • miniPCIe slot for optional WiFi or 4G Modem
  • Remote control via serial port to turn on/off the power or reset the whole system
  • Rugged IP67 water proof & dust proof, anti-corrosion housing
  • NVIDIA® GeForce™ GTX 1050Ti

Product Name: SD-RPJXV-CV3

Description

The SD-RPJXV-CV3 is based on the Nvidia Jetson Xavier platform with 512 GPU cores.

NVIDIA Jetson Xavier is the latest additon to the Jetson Platform. It is a System on Chip (SoC) AI computer for autonomous machines, delivering the performance of a GPU workstation in an embedded module under 300W.

  • CPU/RAM : 8-core ARM v8.2 64-bit CPU, 8MB L2 + 4MB L3
  • GPU: 512-core Volta GPU with Tensor Cores
  • 32GB eMMC 5.1, 1x 2.5" removable SSD Expansion
  • 1x HDMI
  • 3x USB 3.0, 1x USB 2.0
  • 2x GbE port (additional 2x 10GbE port optional)
  • Camera: 4x4 Lane GMSL inputs (2 cameras over USB 3.0 or HDMI optional)
  • GPIO
  • 2x CAN Bus ports
  • (optional expansion - 3G/4G, WiFi, BT or GPS)
  • 1x Power (9 - 36 VDC)

Other Features

  • Operating Temp: -25C to 70C
  • Storage Temp: -30C to 80C
  • Operating Humidity: 5% to 95% (non Condensing
  • Water proof & dust proof, anti-corrosion housing
  • Shock & Vibration: MIL-STD-810G Compliant
  • M12 X-Coded connectors
