Industrial PC Servers (with PCIe Expansion)

High performance mission computer
SDK Embedded Systems
SDK Embedded Systems Industrial Servers with PCIe Expansion can be provided in Industrial and Rugged formats depending on your application requirements.

These high performance servers utilise a fanless design using specially engineered heatpipe technology. They are based on the latest generation of Intel Core-i7 processors and chipsets and have a range of interfaces.


Product Name
Description
Other Features

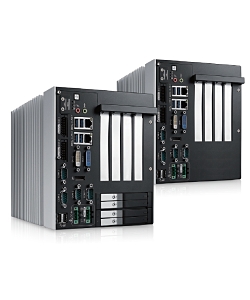

Product Name: SD-9RCI7

Description

The SD-9RCI7 is a robust fanless server solution.

  • CPU : Quad Core i7/i5/i3 6th Generation Intel® Skylake®
  • Intel Q170 Chipset
  • Memory : Up to 32GB
  • On-board DVI-I, DVI-D and Display port supports up to 3 independant HD displays
  • 2x GbEthernet
  • 7x USB 3.0
  • 4x COM
  • 4x PCI/PCIe Slots
  • 3x Mini PCIe slots
  • 3x SIM
  • 32x Isolated DIO
  • 4x SATA III (6Gbps) SSD/HDD
  • Fanless Operation -25C to 70C
  • 6V to 36V DC (80V Surge protection)

Other Features

  • Intel® Core i7-6700/i7-6700TE/i5-6500/i5-6500TE/i3-6100/i3-6100TE processor
  • 2x DDR4 2133MHz SO-DIMM up to 32GB
  • External dimensions 210 x 252 x 176mm
  • 3.8Kg Weight

Product Name: SD-RUGIH71

Description

The SD-RUGIH71 is a Military standard embedded PC with PCIe Expansion.

  • CPU : i7/i5 4th Generation Intel® Haswell®
  • Intel QM87 PCH Chipset
  • Memory : Up to 16GB
  • 2x GbEthernet
  • 2x USB 2.0
  • 2x RS232
  • 1x RS232/422/485
  • 3x PCI/PCIe Slots
  • 8x GPIO
  • 3x SATA III (6Gbps) SSD/HDD
  • Fanless Operation -20C to 60C
  • 12V DC Power Input
  • MIL-STD-810G Environmental compliance
  • MIL-STD-461F EMC compliance

Other Features

  • Intel® Core i7-4700EQ 2.4GHz or i5-4400E 2.7GHz processor
  • DDR3/DDR3L-1600 SO-DIMM up to 16GB
  • External dimensions 231 x 215 x 141mm
  • 3.5Kg Weight

Product Name: SD-RUGIS71

Description

The SD-RUGIS71 is a Military standard embedded PC with PCIe Expansion.

  • As above with Core i7/i5 6th Generation Intel® Skylake® Processor

Other Features

  • As above
