Rackmount Rugged Servers

Military Rackmount Rugged Servers
SDK Embedded Systems

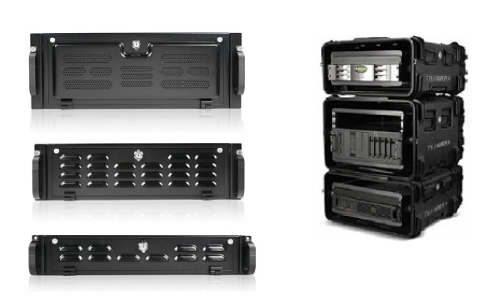

SDK Embedded Systems rack mounted rugged servers provide the latest state-of-the-art high-performance commercial computing solutions in a rugged chassis suited for deployment in harsh environments.

These rackmounted servers can be combined as a workstation package in a rugged transit case and configured with Monitor, keyboard & mouse, built-in hot swappable multi-terabyte redundant storage and redundant power supplies to provide secure backup of data while in the field.


Product Name
Description
Other Features

Product Name: SD-RX12S2U

Description

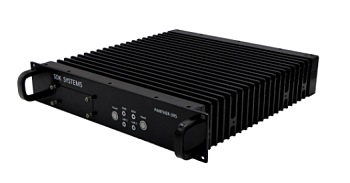

2U Rackmount Military Rugged Server RX12 Series

  • Dual Socket LGA 2011 R3 support Intel Xeon processor E5-2600 v3 series
  • Supports DDR4 2133/1866/1600 LR DIMM, Registered, ECC DIMM and NV DIMM, 8 x DIMM
  • Supports 10 x SATA3 6.0 Gb/s by INTEL C612, 2 xminiSAS HD connectors by LSI3008
  • Supports 2 PCIe3.0x 16, 1 PCIe 3.0 x8
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • Support 2x 10GLAN by Intel X540
  • Shock & Vibration : MIL-STD-810G Compliant
  • EMC : MIL-STD-461F Compliant
  • MIL-DTL-38999 Type Connectors

Other Features

  • Anti-vibration drive cage design
  • 1.6mm SGCC heavy-duty cold-rolled steel
  • Removable air filter
  • Front access USB 2.0
  • Redundant Power Supply compatible
  • Built in 3x 3.5"/2.5" HDD/SSD drive (hot swap)
  • Options for Additional SSD Storage
  • Spill proof bezel with Lock

Product Name: SD-RX12S3U

Description

3U Rackmount Military Rugged Server RX12 Series

  • As above with additonal SSD storage options

Other Features

  • As above

Product Name: SD-RX12S4U

Description

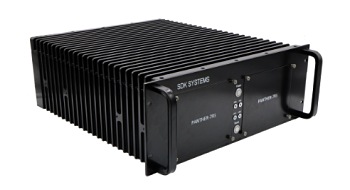

4U Rackmount Military Rugged Server RX12 Series

  • As above with additonal SSD storage options

Other Features

  • As above
