10 / 40 / 100 Gigabit FPGA Digital I/O


newwave dv 10gbe xmc & pcie fpga digital io cards
New Wave DV
New Wave DV’s programmable network interface cards are designed specifically for real-time, high-bandwidth streaming directly from sensors such as 10 / 40 / 100 Gigabit Ethernet networks and 10 Gigabit S-FPDP applications deployed in high-end, rugged environments and mission-critical systems, next-generation radar and signal intelligence systems.

These feature-rich and versatile solutions provide a good out-of-the-box experience because they are easy to program to achieve higher performance and optimization (Available with streaming front-end FPGA core for quick sensor integration and advanced APIs that support multi-core and multi-processor architectures).

The boards are available in air cooled and conduction cooled designs with rugged front panel connectors. Alternatively, the high speed serial interfaces can be routed through the P16 rear I/O for backplane communication.

IP Cores available: Ethernet (UDP & TCP offload), Fibre Channel (LL, ASM, HSDN, RDMA), Firewire 1394 (PHY, OHCI, GP2Lynx)


XMC

Product Name
Description

Product Name: V1160 XMC

Description

The industry's most advanced Ethernet XMC for 10/25/40/100Gbs Ethernet in high-bandwidth, low-latency applications.
  • Dual 10/25/40/100Gbs Ethernet ports
  • Supports PCIe Gen4 x16, Gen4 x8, Gen3 x16, Gen3 x8
  • NVIDIA® Mellanox® ConnectX®-5 Network Interface
  • Operating Temperature : 0°C to 55°C (air cooled)
  • Operating Temperature : -40°C to 85°C (conduction cooled)

Product Name: V1153 XMC

Description

The V1153 is designed for rugged high-bandwidth networking and interface applications. The V1153 supports 12 full-duplex optical ports operating at up to 25Gb/s per port over a -40 to +85C temperature range. This VITA 20 compliant XMC module can provide high-density interface offload and data processing capabilities in a rugged, low SWaP package
  • Twelve 1G to 25G optical lanes to MPO front panel I/O or VITA 66 optical backplane I/O
  • Supports PCIe Gen3 x 16 and Gen4 x 8
  • Xilinx Virtex/Kintex UltraScale+ FPGA
  • One bank of 8GB 64-bit up to 1200MHz DDR4 SDRAM
  • Operating Temperature : 0°C to 45°C (air cooled)
  • Operating Temperature : -40°C to 85°C (conduction cooled)

Product Name: V1152 XMC

Description

The V1152 is the industry’s most advanced FPGA XMC Card solution. This PMC/XMC solution is a COTS designed solution providing real time high-bandwidth network interfaces for SWaP optimised rugged applications.
  • Supports 1/10/25/40/100 Ethernet, 1/2/4/8/16/32G Fibre Channel and 1/2/2.5/10G sFPDP
  • Three QSFP28 optical ports
  • Xilinx Virtex/Kintex UltraScale+ FPGA
  • One bank of 4GB to16GB 64-bit up to 1200MHz DDR4 SDRAM
  • Operating Temperature : 0°C to 45°C (air cooled)
  • Operating Temperature : -40°C to 70°C (conduction cooled)

Product Name: V1141 XMC

Description

The V1141 is the lowest power and most secure programmable networking card available. This PMC/XMC solution is designed to provide real time high-bandwidth network interfaces in a secure and lower power architecture.
  • Quad SFP+ optical ports capable of Ethernet or Fibre Channel up to 5 Gb/s
  • Microsemi SmartFusion2 M2S150
  • One bank of 1GB to 2GB 64-bit up to 800MHz DDR3 SDRAM
  • One bank of 36Mbit to 144Mbit 18-bit 550MHz QDRII+ SRAM
  • Operating Temperature : -40°C to 70°C (conduction cooled)
  • Built-in UDP offload engine for real-time communication
  • Supports PCI Express and XAUI host interfaces
  • Available in air and conduction-cooled XMC form factor

Product Name: V1131 XMC

Description

The V1131 comes with a range of Stratix V FPGAs (A3 to A7), different memory configurations to meet application requirements, and support for different carrier boards using PCIe and XAUI. Design flexibility to meet application requirements results in optimized SWaP, shorter development cycle, and enhanced performance.
  • Quad 10 Gigabit Ethernet SFP+ optical ports
  • Altera Stratix V 5SGXMA3H2F35C2N to 5SGXMA7H2F35C2N
  • One bank of 1GB to 2GB 64-bit up to 800MHz DDR3 SDRAM
  • One bank of 36Mbit to 144Mbit 18-bit 550MHz QDRII+ SRAM
  • Operating Temperature : -40°C to 70°C (conduction cooled)
  • Built-in UDP offload engine for real-time communication
  • Supports PCI Express and XAUI host interfaces
  • Available in air and conduction-cooled XMC form factor

Product Name: V1121 XMC

Description

The V1121 features two 10 Gigabit Ethernet SFP+ optical interfaces and supports the UDP, ARP and ICMP communication protocols. Its advanced architecture and built-in Ethernet offload capabilities provide data transfer at sustained rates exceeding 9.2Gbps.
  • Dual 10 Gigabit Ethernet SFP+ optical ports
  • Xilinx Virtex-5 LX110T or LX155T
  • 2 banks of 0.5GB or 1GB 64-bit 266MHz DDR2 SDRAM
  • Operating Temperature : -10°C to 70°C (conduction cooled)
  • Built-in UDP offload engine for real-time communication
  • Supports PCI Express and XAUI host interfaces
  • Available in air and conduction-cooled XMC form factor

PCI Express

Product Name
Description

Product Name: V5052 PCIe

Description

The V5052 is a high density FPGA PCIe Card for next generation data distribution, processing, and networking systems.
  • Supports 1/10/25/40/100 Ethernet and 1/2/4/8/16/32G Fibre Channel
  • Quad QSFP28 optical ports
  • Xilinx Virtex UltraScale+ FPGA
  • Operating Temperature : 0°C to 45°C (air cooled)

Product Name: V5031 PCIe

Description

The V5031 is purpose-built for processing network data in real time, it is optimized to provide the lowest possible latency and the highest possible performance.
  • Quad 10 Gigabit Ethernet SFP/SFP+ optical ports
  • Altera Stratix V (scalable from A3 to AB)
  • 2 banks of 1GB to 8GB 72-bit 1066MHz DDR3 SDRAM
  • 4 banks of 36Mbit to 144Mbit 18-bit 350MHz QDRII+ SRAM
  • Operating Temperature : 0°C to 50°C (air cooled)
  • 8-lane PCI Express Gen 3 host interface
  • On-board FLASH for dual boot support
  • Mini SAS transceiver interface for intercard communication
  • PPS interface for time synchronization with µSec resolution

Product Name: V5022 PCIe

Description

The V5022 is built with purpose for processing high-bandwidth network traffic in real time. As a build option, it supports the HX380T and HX565T from Xilinx offering customers some key benefits, including very high number of logic gates and reliable communications.
  • Quad 10 Gigabit Ethernet SFP+ optical ports
  • Xilinx Virtex-6 XC6VHX380T or XC6VHX565T
  • 2 banks of 1GB to 4GB 64-bit 533MHz DDR3 SDRAM
  • 4 banks of 36Mbit to 144Mbit 18-bit 350MHz QDRII+ SRAM
  • Operating Temperature : 0°C to 50°C (air cooled)
  • Dual boot image with fallback multi-boot feature

Product Name: V5021 PCIe

Description

The V5021 PCI Express server card provides scalable processing performance. Its memory architecture is based on multiple independent high-speed SDRAM and SRAM memory interfaces that enable advanced 10 Gigabit Ethernet network traffic processing.
  • Standard half-length, full-height PCI Express server card
  • Dual 10 Gigabit Ethernet SFP+ optical ports
  • 10/100/1000BASE-T RJ-45 port
  • Xilinx Virtex-5 LX110T, LX220T, LX330T, or SX240T
  • 2 banks of 0.5GB or 1GB 64-bit 266MHz DDR2 SDRAM
  • 2 banks of 36Mb or 72Mb 233MHz DDR2 SRAM
  • Operating Temperature : 0°C to 50°C (air cooled)
  • Time stamp capability with microsecond resolution

expressXG™ FPGA Development Framework

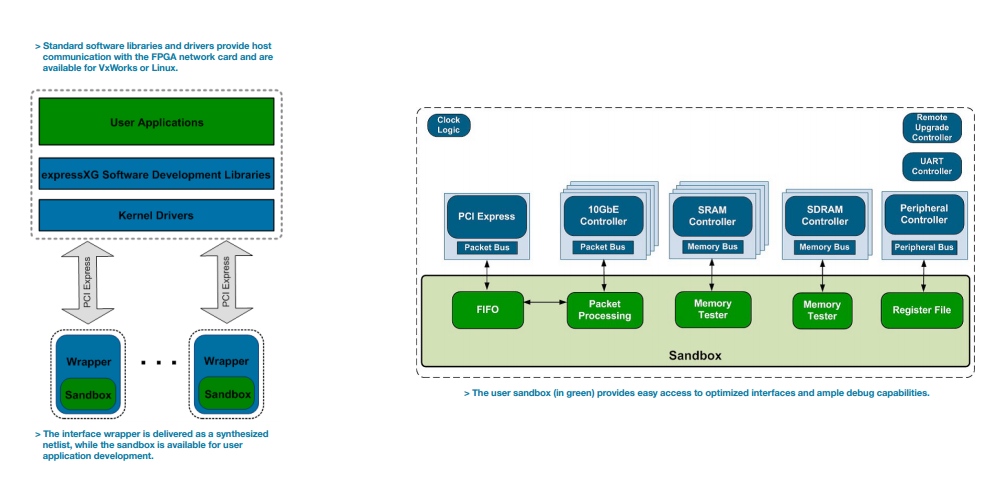

The expressXG Development Framework is a fully integrated product designed to deliver optimum functionality and accelerate application development on a broad range of open standards FPGA cards from New Wave Design and Verification. It is available with high-performance software libraries and drivers allowing developers to achieve their best results in the least amount of time — right out-of-the-box. newwave expressXG development software sandbox Elegantly simple and modular, the expressXG Development Framework consists of an interface wrapper and a user sandbox. The wrapper, a hardware abstraction layer, provides a robust user interface to all high-performance interfaces required for an FPGA Ethernet card to fully function. The sandbox region, where designers play, features easy-to-follow examples that will jump-start user application development and debugging. All features are intended to promote the rapid coding and integration of high-performance applications with FPGA technology.

The expressXG Development Framework includes high-performance software libraries and drivers supported for both the Linux and VxWorks operating systems. Included in the package are software APIs, kernel drivers, libraries, and software examples — everything programmers need to develop applications that communicate seamlessly with the expressXG Development Framework.

[Read more...]


[RapXG High Performance Packet Capture & Playback Solution (Ready to Run)...]
