Data Recorder GUI & Control API

Accelerate your Recording Systems Development with Pentek's SystemFlow Recording Software

Pentek SystemFlow data recording gui
Pentek's SystemFlow data recording application provides the user with a complete 'out of the box' recorder front end. This comprehensive application includes an 'easy to use' Graphical User interface (GUI), Signal Viewer, Data Analysis Tools and API.

The SystemFlow GUI provides an instrument control interface allowing users to quickly setup and control the recorder hardware without having to write any control software. This jump starts development allowing the recorder system to be configured and data to be captured straightaway. When it is time to deploy the recorder and capture real-time mission data, developer's can use Pentek's SystemFlow API to develop their own automated control application (with local or remote operation).

Also included is an integrated signal viewer with virtual oscilloscope and spectrum analyzer display to allow for analysis of signals prior to, during and after recording.

SystemFlow Architecture

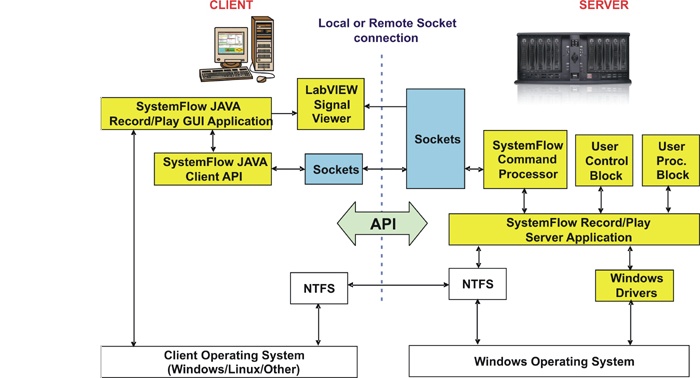

Pentek SystemFlow data recording software architecture

• Server/Client Architecture: The SystemFlow architecture provides for easy communication between the recording system Server and the Client.

• SystemFlow GUI: The SystemFlow architecture features a Windows-based GUI (Graphical User Interface) that provides a simple means to configure and control the system. Custom configurations can be stored as profiles and later loaded when needed, allowing the user to select preconfigured settings with a single click.

• SystemFlow Signal Viewer: SystemFlow also includes signal viewing and analysis tools that allow the user to monitor the signal prior to, during, and after a recording session. These tools include a virtual oscilloscope and a virtual spectrum analyzer.

• Server/Client Communication: Server and Client communicate through a standard socket connection. This arrangement enables the Server to provide real-time recording and playback functions that can be controlled from a local or a remote Client. It also allows Client and Server to run on different operating systems.

• Function Libraries: The function libraries and tools for controlling the recording and playback functions include the Application Programming Interface, the Graphical User Interface and the integrated Signal Viewer.

• SystemFlow API: The SystemFlow API (Application Programming Interface) allows developers to configure and customize the system interfaces and operation. Source code is supplied for all client API functions. A well-defined set of plugins allows the user to extend server API functions.

• NTFS File System: The NTFS file management system provides immediate access to the recorded data, thereby eliminating time-consuming data conversion processes required with proprietary file management systems. It also eliminates the need for custom hardware and software platforms where the recorded data may need to be physically transported for conversion.

Demo Simulator for Talon Recording Systems

Try Pentek's SystemFlow Demo Simulator software package. The SystemFlow Simulator allows you to learn how to use the Talon recording system's SystemFlow software interface before you acquire a recorder or while you are waiting for delivery of a Talon recording system. The Simulator can simulate the operating environment of all the different Talon recorder models.

The Simulator uses the same client-server architecture as every Talon recording system, thereby allowing you to use either the SystemFlow GUI (Graphical User Interface) or SystemFlow API (Application Programming Interface) to control the system. In this way, the Simulator allows you to experience how the system operates exactly as you would experience using an actual system in the field.

The Server is responsible for the real-time data recording, while the Client provides the user interface, used to control and monitor the recorder. The Client is provided as a GUI (Graphical User Interface). The Client issues commands to the Server over a socket connection.

[Download SystemFlow Simulator and User Guide...]
