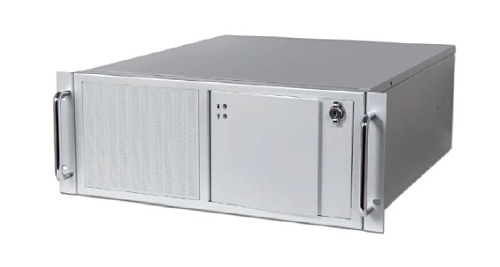

High Speed Analog Data Recording Instruments

Analog Interface Options


High Speed Recording Instruments
Pentek
The Pentek Real-Time Recording Systems eliminate the time and risk associated with developing in house recording solutions. The Talon recorder platform is a complete off-the-shelf solution it is supplied with Pentek's SystemFlow Software to aid system integration and thereby reduce the time-to-market.

Out of the box, all systems arrive as ready-to-run instruments with a full-featured virtual operator control panel ready for immediate data recording and/or playback operation.

Talon systems are based on modular COTS board-level products and flexible control software, they are scalable for multi-channel, high speed sustained recording, making them ideal as a data acquisition resource for real-time embedded signal processing applications.

Pentek RTX (Extreme Rugged Rackmount) Recorder systems are designed to meet MIL-STD-810 shock/vibration and EMC/EMI per MIL-STD-461 EMC and have four front-panel removable QuickPac™ SSD drive canisters. [Read more...]

200 MS/sec RF/IF Recorder

200 MS/sec RF/IF Recorder - Description

A complete turnkey, multiband recording and playback system for recording and reproducing high-bandwidth signals. The recorder is controlled via SystemFlow® GUI with signal viewer analysis tool which includes a virtual oscilloscope and spectrum analyzer.

  • 200 MHz max 16-bit A/D sampling and recording: 0 - 8 channels
  • 800 MHz (up to 1.25GHz max) 16-bit D/A sampling for playback: 0 - 8 channels
  • 80 MHz max. record and playback signal bandwidths
  • Record/playback of IF frequencies to 700 MHz

Product Name: Model RTV 2601

  • Low Cost.
  • 19" Rackmount.
  • 4TB HDD storage.

Product Name: Model RTS 2706

  • 19" Rackmount.
  • up to 100TB SSD storage.

Product Name: Model RTR 2726

  • Rugged Portable.
  • up to 7.6TB SSD storage.

Product Name: Model RTR 2746

  • 19" Rugged Rackmount.
  • up to 46TB SSD storage.

Product Name: Model RTX 2766

  • 19" Extreme Rugged Rackmount.
  • up to 30TB Removable SSD storage.

Product Name: Model RTX 2786A

  • 1/2 ATR.
  • up to 15.36TB Removable SSD storage.
250 MS/sec RF/IF Recorder

250 MS/sec RF/IF Recorder - Description

A complete turnkey, multiband recording and playback system for recording and reproducing high-bandwidth signals. The recorder is controlled via SystemFlow® GUI with signal viewer analysis tool which includes a virtual oscilloscope and spectrum analyzer.

  • Sixteen 250 MHz 16-bit A/Ds
  • Sixteen independently-configurable DDC decimations ranging from 2 to 65536
  • Sixteen independently-configurable DDC tuning frequencies
  • Capable of recording RF frequencies to 700 MHz
  • Capable of recording signals with bandwidths to 100 MHz

Product Name: Model RTR 2750

  • 19" Rugged Rackmount.
  • up to 61TB SSD storage.
500 MS/sec RF/IF Recorder

500 MS/sec RF/IF Recorder - Description

A complete turnkey, multiband recording and playback system for recording and reproducing high-bandwidth signals. The recorder is controlled via SystemFlow® GUI with signal viewer analysis tool which includes a virtual oscilloscope and spectrum analyzer.

  • 500 MHz 12-bit A/Ds or 400 MHz 14-bit A/Ds: 0 - 8 channels
  • 800 MHz (up to 1.25GHz max) 16-bit D/As for playback: 0 - 2 channels
  • 200 MHz record and playback signal bandwidths
  • Recording and playback of IF signals up to 700 MHz

Product Name: Model RTS 2707

  • 19" Rackmount.
  • 100TB HDD storage.

Product Name: Model RTR 2727

  • Rugged Portable.
  • up to 7.6TB SSD storage.

Product Name: Model RTR 2747

  • 19" Rugged Rackmount.
  • up to 46TB SSD storage.

Product Name: Model RTX 2767

  • 19" Extreme Rugged Rackmount.
  • up to 30TB Removable SSD storage.
1 GS/sec RF/IF Recorder

1 GS/sec RF/IF Recorder - Description

A complete turnkey, multiband recording and playback system for recording and reproducing high-bandwidth signals. The recorder is controlled via SystemFlow® GUI with signal viewer analysis tool which includes a virtual oscilloscope and spectrum analyzer.

  • 1 GHz 12-bit A/Ds: 0 - 2 channels
  • 1 GHz 16-bit D/As: 0 - 2 channels
  • 400 MHz recording and playback signal bandwidths
  • Recording of IF signals up to 2 GHz

Product Name: Model RTR 2728

  • Rugged Portable.
  • up to 7.6TB SSD storage.

Product Name: Model RTR 2748

  • 19" Rugged Rackmount.
  • up to 38.4TB SSD storage.

Product Name: Model RTX 2768

  • 19" Extreme Rugged Rackmount.
  • up to 30TB Removable SSD storage.
3.6 GS/sec RF/IF Recorder

3.6 GS/sec RF/IF Recorder - Description

A complete turnkey, multiband recording and playback system for recording and reproducing high-bandwidth signals. The recorder is controlled via SystemFlow® GUI with signal viewer analysis tool which includes a virtual oscilloscope and spectrum analyzer.

  • Sample rates up to 3.6 GHz in single-channel mode
  • Sample rates up to 1.8 GHz in dual-channel mode
  • Capable of recording RF/IF frequencies to 1.75 GHz in single-channel mode
  • Capable of recording RF/IF frequencies to 2.8 GHz in dual-channel mode
  • 12-bit A/D, with 8-bit and 16-bit packing modes

Product Name: Model RTR 2729A

  • Rugged Portable.
  • up to 7.6TB SSD storage.

Product Name: Model RTR 2749

  • Rugged Rackmount.
  • up to 38.4TB SSD storage.

Product Name: Model RTX 2769

  • Extreme Rugged Rackmount.
  • up to 30TB Removable SSD storage.
Talon 6 GHz RF/IF Sentinel Intelligent Signal Scanning Recorder

6 GHz RF/IF Sentinel Intelligent Signal Recorder - Description

A complete turnkey, Intelligent Signal Scanning Recorder (and playback) system with the ability to scan the 6 GHz spectrum for signals of interest and monitor or record bandwidths up to 40 MHz wide once a signal band of interest is detected. The spectral scan facility allows the user to sweep the spectrum at 30 GHz/sec, while threshold detection allows the system to automatically lock onto and record the signal bands. Scan results are displayed in a waterfall plot.

  • Captures RF signals up to 6 GHz
  • Capture and scan bandwidths up to 40 MHz
  • 30 GHz/sec scan rate
  • Selectable threshold triggered or manual record modes
  • 16-bit A/D with 75 dB SNR & 87 dB SFDR

Product Name: Model RTS 2620

  • Rugged Rackmount.
  • up to 192TB SSD storage.

SystemFlow Recording Software

All recording systems are supported with Pentek’s SystemFlow Recording Software suite. SystemFlow provides a rich set of features for controlling the data acquisition and recording functionality of these systems and ensures a consistent look and feel for developers across all RTS systems.

SystemFlow’s GUI (graphical user interface) allows the operator to control all programmable hardware function parameters including gating, triggering, data formatting and clock selection on the various A/D, D/A, digital downconverter, and digital upconverter modules. A file management system supports recording and playback of data files on the RAID or JBOD with terabytes of storage and archiving of files to the host PC running Windows or Linux. Configuration profiles for specific hardware settings can be stored and retrieved to streamline setting up recurring measurement scenarios (ideal for Production Testing).

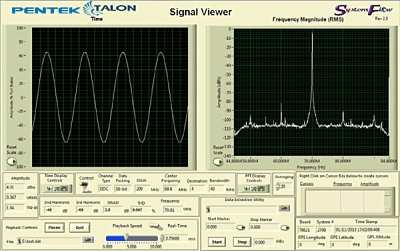

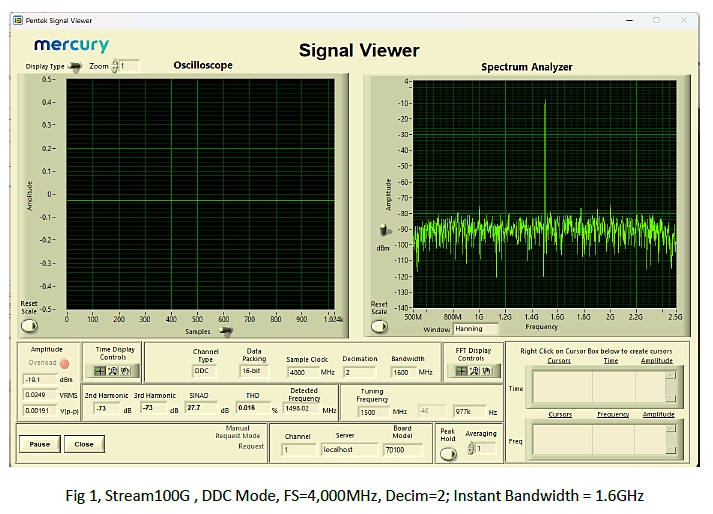

The SystemFlow Signal Viewer presents a calibrated time and frequency display of data files after signal acquisition and serves as a monitor of live input signals for a prerecording check. The SystemFlow API allows developers to configure and customize the subsystem interfaces and operation. Source code is supplied for all API functions, including real-time data acquisition, recording and playback functions and for the user-control software running on the host PC.
[Read more...]
signal analysis
