Reflective Memory

reflective memory



reflective memory
Dolphinics
Dolphin's range of Reflective Memory products delivers low latency performance for real time applications such as simulation, test & measurement, high speed replication, and distributed video. They are suited to the deployment of high speed reliable networks where fast data collection and data replication is required. Typical applications can range from a two-node fail over pair to large DSM applications like aircraft, ship and submarine simulators, automated testing systems, industrial automation and high-speed data acquisition. Because of their inherent replication they are especially good for fault tolerance.

Dolphin PCI Express Software provides the user with a complete software stack, with support for sockets, reflective memory, and shared memory. The Dolphin software is a robust environment for application development. The software library comes with functionality to detect PCI Express protocol failures, remote power failures, disconnected cables etc needed to implement a 100% reliable system for ruggedized unfriendly environments.

The Dolphin solution offers significantly faster access to local data than other solutions from e.g. GE Fanuc. The Dolphin multicast solution uses the computer's main memory as reflective memory while other solutions uses expensive device memory. Solutions using main memory benefit from CPU caching and the very high performance internal memory bus. Device memory on a traditional reflective memory card can not be cached and access to it is very expensive as the CPU needs to fetch the data from the card through the IO system. The Dolphin IXH adapter comes with a x8 PCI Express link enabling customer applications to take advantage of the exceptional 40Gb/s link bandwidth. The Dolphin solution also offers significantly higher performance at a much lower cost than other reflective memory solutions and is available both with low cost copper and with long distance fiber as the interconnect. Mixing fiber and copper is fully supported.

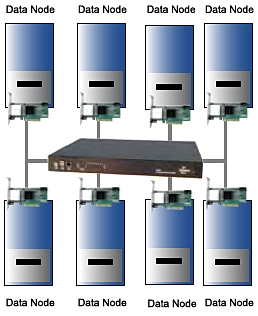

The reflective memory functionality is implemented in the Dolphin Express IX switches. Switches can be cascaded if you need to build larger systems. You can build a 2 node system without the switch and use the regular data unicast (data only written to single remote memory location, no local updates). All hosts need to install a Dolphin Express IX adapter card so that all nodes can write to the replicated memory simultaneously.


Product Name
Description

Product Name: Gen2 PCI Express Host Adapter
IXH610

Gen2 PCI Express Host Adapter
IXH610

Description

PCI Express Host adapter for server, workstation and PC connections.
  • Low profile PCI Express Gen2
  • Feature transparent and non-transparent bridging (NTB)
  • Supports copper cable connections
  • 40 Gbit/s Performance
  • Plug and Play PCI Express Adapter

  • dolphin ixh610

Product Name: Gen3 PCI Express Host Adapter
PXH810

Gen3 PCI Express Host Adapter
PXH810

Description

PCI Express Host adapter for server, workstation and PC connections.
  • Low profile PCI Express Gen3
  • Features transparent and non-transparent bridging (NTB)
  • 64 Gbit/s Performance
  • Supports copper and fibre cable connections
  • Plug and Play PCI Express Adapter

  • dolphin ixh610

Product Name: Gen3 PCI Express Host/Target Adapter
PXH812

Gen3 PCI Express Host/Target Adapter
PXH812

Description

PCI Express Host and Target adapter for server, workstation and PC connections.
  • Low profile PCI Express Gen3
  • Features transparent bridging only
  • 64 Gbit/s Performance
  • Supports copper and fibre cable connections
  • Plug and Play PCI Express Adapter

  • dolphin ixh610

Product Name: Gen3 PCI Express Host Adapter
PXH830

Gen3 PCI Express Host Adapter
PXH830

Description

PCI Express Host adapter for server, workstation and PC connections.
  • Low profile PCI Express Gen3
  • One x16 PCIe edge port
  • Four x4 PCIe cable ports
  • PCIe 3.0 or MiniSAS-HD cables
  • Quad SFF-8644 Connectors
  • 0.54 microsecond latency
  • Features transparent and non-transparent bridging (NTB)
  • 128 Gbit/s Performance
  • Supports copper and fibre cable connections
  • Plug and Play PCI Express Adapter

  • dolphin ixh610

Product Name: Gen2 XMC PCI Express Adapter
IXH620

Gen2 XMC PCI Express Adapter
IXH620

Description

XMC PCI Express Adapter for VME, cPCI and VPX embedded systems.
  • Features transparent and non-transparent bridging (NTB)
  • Supports copper cable connections
  • x8 PCI Express support

  • dolphin ixh620

Product Name: 8 port Gen2 PCI Express Switch
IXS600

8 port Gen2 PCI Express Switch
IXS600

Description

8 port PCI Express Gen3 Switch for transparent and non-transparent scaling.
  • 8 Gen3 PCI Express ports
  • Supports copper and fibre cable connections
  • Non-transparent clustering switch

  • dolphin ixs600

Product Name: 24 port Gen3 PCI Express Switch
MXS824 Datasheet available soon

24 port Gen3 PCI Express Switch
MXS824 Datasheet available soon

Description

24 port Gen3 PCI Express Switch for transparent and non-transparent scaling.
  • 24 Gen3 x4 PCI Express ports
  • Gen3 8.0 GT/S per lane
  • 32 GT/s per port
  • Supports copper and fibre cable connections
  • Non-transparent clustering switch
  • SFF-8644 Connectors
  • PCIe 3.0 or MiniSAS-HD cables

  • dolphin ixs600

Product Name: Reflective Memory Software Kit
Reflective Memory

Reflective Memory Software Kit
Reflective Memory

Description

Dolphin offers a complete software suite for shared memory computing.
  • SuperSockets Sockets API for Linux
  • SuperSockets Sockets API for Windows
  • SISCI Shared Memory API Developers Kit
  • Reflective Memory Software Kit
  • Fast File Transfer
  • Optimized TCP IP drivers

  • dolphin refelective memory software stack
