3U VPX Bus Extenders & Carriers

3U VPX bus extenders and carriers
pci-systems
An assortment of Bus Extenders and Carriers for the development of 3U VPX based systems...
Product Name
Description

Product Name: 3U VPX Load Simulation Module PCI_300.600

3U VPX Load Simulation Module
PCI_300.600

Description

The 3U VPX power test module is a thermal load card for evaluating heat dissipation in a rugged conduction cooled VPX cage or chassis.
3U VPX load simulation module


Product Name: PCI Express x16 Gen 3 to VPX Extender PCI_300.147

PCI Express x16 Gen 3 to VPX Extender
PCI_300.147

Description

The PCIe to 3U VPX riser enables a user to connect a 3U VPX module to a standard industry PC with PCIe slots. x16 PCIe Gen2/3 (Gen 1 compatible) based on PCIe Gen3 (8.0 Gbps).
PCI Express x16 Gen 3 to VPX Extender


Product Name: 3U VPX Extender PCI_300.500

3U VPX Extender
PCI_300.500

Description

This extends a module completely out of a chassis, providing access to all sides of the module for testing and debugging.
3U VPX Extender


Product Name: 6U VPX Extender PCI_300.510

6U VPX Extender
PCI_300.510

Description

This extends a module completely out of a chassis, providing access to all sides of the module for testing and debugging.
6U VPX Extender

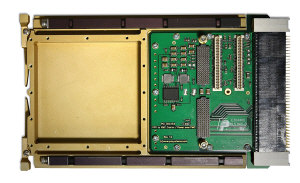

Product Name: 3U VPX XMC Carrier PCI_300.154

3U VPX XMC Carrier
PCI_300.154

Description

A rugged conduction cooled single slot carrier for connecting an XMC module to a standard VPX backplane using PCIexpress 1 x8 lane or 2 x4 lane configurations.
3U VPX XMC Carrier

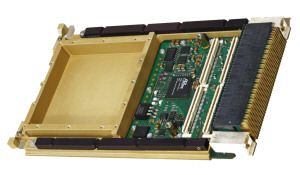

Product Name: 3U VPX PMC Carrier PCI_300.155

3U VPX PMC Carrier
PCI_300.155

Description

A rugged conduction cooled single slot carrier for connecting a standard IEEE 1386.1-compatible PMC (64-Bit 133MHz) module to a standard VPX backplane using PCI Express x1 lane or x4 lane configurations.
3U VPX PMC Carrier


Product Name: 3U VPX SATA SSD Carrier PCI_300.180

3U VPX SATA SSD Carrier
PCI_300.180

Description

Available in two versions - standard SATA and SATA to PCIe x4. It allows for standard SATA COTS drives to be mounted in a chassis for mission data storage.

3U VPX SATA SSD Carrier


Product Name: 3U VPX Bus Extension Kit PCIe Gen. 3 PCI_300.335

3U VPX Bus Extension Kit PCIe Gen. 3
PCI_300.335

Description

A PCIexpress bus extension kit permits a standard desktop PC to expand its available PCIe slots and is used as a system master for control of a VPX chassis for industrial applications in measurement, control and testing.

3U VPX Bus Extension Kit PCIe Gen. 3
