Pentek Cobalt 3U VPX Analog I/O with Virtex-6 FPGA




pentek cobalt virtex-6 analog io cards
Pentek

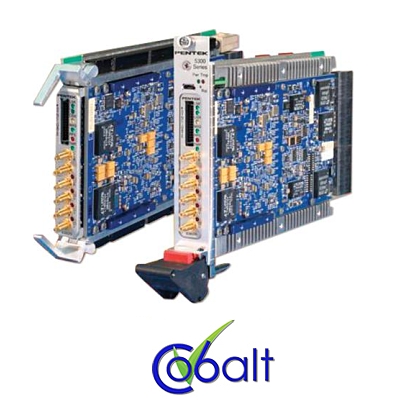

Pentek's Virtex-6 FPGA based family of 3U VPX boards (for data acquisition, software radio and digital signal processing), offers flexible backplane fabric connections supporting maximum data rates of up to 4 GB/sec with Generation 2 PCI Express. The 3U VPX form factor is compact and extremely well suited for avionics, including UAVs, shipboard and airborne radar and signal intelligence applications.

Each of the 3U VPX modules features a Generation 2 PCI Express interface (PCI Express 2.0). The PCI Express interface includes a bridge that provides PCIe lane-width negotiation for x1, x4 or x8 data transfers over the VPX backplane. Models 53XXX feature a crossbar switch which allows for flexible assignment of the PCIe interface lanes to backplane connector pins. The crossbar supports gigabit serial protocols for moving data independently of any particular protocol (e.g. Xilinx Aurora or Serial Rapid I/O). It can also handle multiple data streams simultaneously and allows each module to act as a VPX switch managing serial fabric connections to and from other modules across the backplane. Models 52XXX do not have the crossbar switch fitted.

  • Virtex 6 (LX130T, LX240T or SX315T)
  • Modular memory (DDR3 SDRAM/QDRII+ SRAM
  • PCIe (Gen 2.0) upto x8
  • LVDS connections to V6 FPGA for custom I/O
  • Multiboard analog clock synchronisation
  • Compatible with VITA-46, VITA-48 and VITA-65 (OpenVPX System Specification)
  • Air and conduction cooled versions available


3U VPX (Virtex-6 FPGA)

Product Name
Description

Product Name: Model 53620

Description

3ch ADC, 16 bit, 200MHz + 2ch DAC, 16 bit, 800MHz

Product Name: Model 53621

Description

3ch ADC, 16 bit, 200MHz (with 3 x Multiband DDC) + 2ch DAC, 16 bit, 800MHz

Product Name: Model 53630

Description

1ch ADC, 12 bit, 1GHz + 1ch DAC, 16 bit, 1GHz

Product Name: Model 53640

Description

1ch ADC, 12 bit, 3.6GHz OR 2ch ADC, 16 bit, 1.8GHz

Product Name: Model 53641

Description

1ch ADC, 12 bit, 3.6GHz OR 2ch ADC, 16 bit, 1.8GHz (with Programmable 1 or 2 channel DDC)

Product Name: Model 53650

Description

2ch ADC, 12 bit, 500MHz + 2ch DAC, 16 bit, 800MHz

Product Name: Model 53660

Description

4ch ADC, 16 bit, 200MHz

Product Name: Model 53661

Description

4ch ADC, 16 bit, 200MHz (with 4 x Multiband DDC)

Product Name: Model 53662

Description

4ch ADC, 16 bit, 200MHz (with 32 Channel DDC)

Product Name: Model 53663

Description

4ch ADC, 16 bit, 200MHz (with 1100 Channel DDC, Complete GSM channelizer with analog IF interface)

Product Name: Model 53664

Description

4ch ADC, 16 bit, 200MHz (Digital down converter (DDC), interpolation and beamforming IP, VITA 49 Radio Transport protocol engine)

Product Name: Model 53670

Description

4ch DAC, 16 bit, 1.25GHz (with 4 Channel DUC)

Product Name: Model 53671

Description

4ch DAC, 16 bit, 1.25GHz (with 4 Channel DUC), Extended interpolation range from 2x to 1,048,576x

Product Name: Model 53690

Description

L-Band RF Tuner with 2ch 200 MHz A/D


Note: If Model 52XXX without the crossbar switch is of interest please contact us for the relevent datasheet.
