Rugged High Capacity Data Recorders ( > 4GB/Sec throughput)
Analog & Digital Interface Options

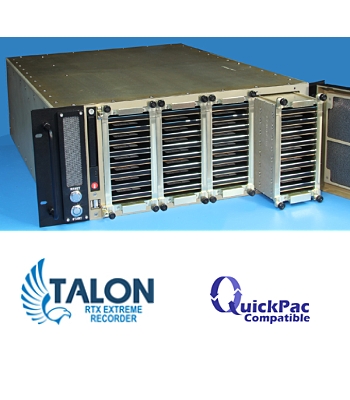

Pentek's Talon® RTX rackmount series recorders are designed for extremely harsh environments and provide unmatched performance and storage capacity in a new, military-specified rackmount chassis. Designed for field operation, the RTX extreme rackmount series provides aggregate recording rates up to 5 GB/sec with up to 30 TB of Removable SSD storage.
Pentek's QuickPacTM storage canisters can be easily swapped in the field without having to remove the complete recorder chassis. Each canister holds eight SSDs, providing up to 7.68 TB of storage per canister, and with up to four QuickPac canisters a total storage capacity of 30 TB is available. Once removed from the system data can be retrieved from the QuickPac Drives for analysis using one of Pentek's Talon offload or playback systems.
All Talon RTX rackmount recorders are designed to meet military specifications for temperature, altitude, shock, vibration, radiated emissions, conducted emissions, ESD, sand and dust as follows:
- Vibration: MIL-STD-810F, method 514.5
- Shock: MIL-STD-810F, method 516.5
- EMI/EMC: MIL-STD-461E, CE101, CE102, CS101 CS114, RE101, RE102, RS101, RS103
- ESD: MIL-STD-1686A
- Sand & Dust: MIL-STD-810F, method 510
Product Name
Description
Description
10GbEthernet Recording System.A complete turnkey system ideal for capturing any type of streaming sources including live transfers from sensors or data from other computers. Supports both TCP and UDP protocols with options for Copper or Optical 10GbE interfaces. Recording of 1 to 4 Channels of 10GbE.
Description
LVDS Recording System.A complete turnkey system for recording and playing back LVDS digital data. Utilises a 32-bit LVDS interface that can be clocked at speeds up to 250 MHz. It includes Data Valid and Suspend signals and provides the ability to turn these signals on and off as well as control their polarity. Recording & Playback of 32-bit LVDS interface.
Description
S-FPDP Recording System.A complete turnkey recording system capable of recording and playing multiple Serial FPDP data streams. It is ideal for capturing any type of streaming sources including live transfers from sensors or data from other computers and is fully compatible with the VITA 17.1 specification. Supporting 1.0625, 2.125, 2.5, 3.125 and 4.25 GBaud link rates with options for copper, single-mode and multi-mode fiber interfaces. Also supports Flow Control, CRC, and Copy/Loop Mode as a receiver and transmitter. Recording & Playback of up to 8 S-FPDP channels.
Description
200 MS/sec RF/IF Recording System.A complete turnkey, multiband recording and playback system for recording and reproducing high-bandwidth signals. The recorder is controlled via SystemFlow® GUI with signal viewer analysis tool which includes a virtual oscilloscope and spectrum analyzer.
- 200 MHz max 16-bit A/D sampling and recording: 0 - 8 channels
- 800 MHz (up to 1.25GHz max) 16-bit D/A sampling for playback: 0 - 8 channels
- 80 MHz max. record and playback signal bandwidths
- Record/playback of IF frequencies to 700 MHz
Description
500 MS/sec RF/IF Recording System.A complete turnkey, multiband recording and playback system for recording and reproducing high-bandwidth signals. The recorder is controlled via SystemFlow® GUI with signal viewer analysis tool which includes a virtual oscilloscope and spectrum analyzer.
- 500 MHz 12-bit A/Ds or 400 MHz 14-bit A/Ds: 0 - 8 channels
- 800 MHz (up to 1.25GHz max) 16-bit D/As for playback: 0 - 2 channels
- 200 MHz record and playback signal bandwidths
- Recording and playback of IF signals up to 700 MHz
Description
1 GS/sec RF/IF Recording System.A complete turnkey, multiband recording and playback system for recording and reproducing high-bandwidth signals. The recorder is controlled via SystemFlow® GUI with signal viewer analysis tool which includes a virtual oscilloscope and spectrum analyzer.
- 1 GHz 12-bit A/Ds: 0 - 2 channels
- 1 GHz 16-bit D/As: 0 - 2 channels
- 400 MHz recording and playback signal bandwidths
- Recording of IF signals up to 2 GHz
Description
3.6 GS/sec RF/IF Recording System.A complete turnkey, multiband recording and playback system for recording and reproducing high-bandwidth signals. The recorder is controlled via SystemFlow® GUI with signal viewer analysis tool which includes a virtual oscilloscope and spectrum analyzer.
- Sample rates up to 3.6 GHz in single-channel mode
- Sample rates up to 1.8 GHz in dual-channel mode
- Capable of recording RF/IF frequencies to 1.75 GHz in single-channel mode
- Capable of recording RF/IF frequencies to 2.8 GHz in dual-channel mode
- 12-bit A/D, with 8-bit and 16-bit packing modes
SystemFlow Recording Software
All recording systems are supported with Pentek’s SystemFlow Recording Software suite. SystemFlow provides a rich set of features for controlling
the data acquisition and recording functionality of these systems and ensures a consistent look and feel for developers across all RTS systems.
SystemFlow’s GUI (graphical user interface) allows the operator to control all programmable hardware function parameters including gating, triggering, data formatting and clock selection on the various A/D, D/A, digital downconverter, and digital upconverter modules. A file management system supports recording and playback of data files on the RAID or JBOD with terabytes of storage and archiving of files to the host PC running Windows or Linux. Configuration profiles for specific hardware settings can be stored and retrieved to streamline setting up recurring measurement scenarios (ideal for Production Testing).
The SystemFlow Signal Viewer presents a calibrated time and frequency display of data files after signal acquisition and serves as a monitor of live input signals for a prerecording check. The SystemFlow API allows developers to configure and customize the subsystem interfaces and operation. Source code is supplied for all API functions, including real-time data acquisition, recording and playback functions and for the user-control software running on the host PC.
