Programmable DC Power Supplies

High Quality Power Processing Platforms, Key Features:

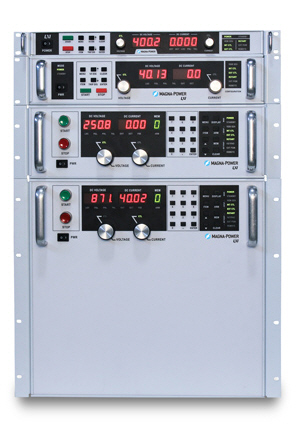

Industry leading power density: Rack-mount space is always at a premium. Magna-Power Electronics power supplies are continuously refined with new technology and devices to drive down size and increase power density.

High accuracy programming: ±0.075% full scale programming accuracy on all models and programming interfaces.

High power factor: > 0.92 on all 3Φ models: Attention to AC power quality and input inductance enables a high power factor, consistent across all 3Φ input voltages.

Extensive programming interface options

LXI TCP/IP Ethernet Interface Option (+LXI)

Remote Interface Software

Standard 37-pin isolated I/O and RS232

Multiple front panel types for flexibility

CE Mark safety and EMI/EMC certification

Product Name: SL Series
SL DataSheet

Description

• 1.5kW to 6kW
• Power Levels: 1.5 kW, 2.6 kW, 4 kW, 6 kW
• Package Size: 1U Rack-mount
• Number of Models: 70
• Available Voltages: From 0-5 to 0-1000 Vdc
• Available Currents: From 0-1.5 to 0-250 Adc

Other Features

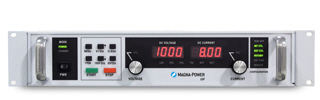

Product Name: XR Series
XR DataSheet

Description

• 2kW to 10kW
• Power Levels: 2 kW, 4 kW, 6 kW, 8 kW, 10 kW
• Package Size: 2U Rack-mount
• Number of Models: 70
• Available Voltages: From 0-5 to 0-10000 Vdc
• Available Currents: From 0-0.2 to 0-600 Adc

Other Features

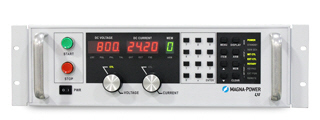

Product Name: TS Series
TS DataSheet

Description

• 5kW to 45kW
• Power Levels: 5 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 45 kW
• Package Size: 3U to 9U Rack-mount
• Number of Models: 80
• Available Voltages: From 0-5 to 0-4000 Vdc
• Available Currents: From 0-1.2 to 0-2700 Adc

Other Features

Product Name: MS Series
MS DataSheet

Description

• 30kW to 75kW
• Power Levels: 30 kW, 45 kW, 60 kW, 75 kW
• Package Size: Floor Standing
• Number of Models: 80
• Available Voltages: From 0-5 to 0-4000 Vdc
• Available Currents: From 0-7.2 to 0-4500 Adc

Other Features

Product Name: MT Series
MT DataSheet

Description

• 100kW to 2000kW
• Power Levels: 100 kW to 2000 kW+
• Package Size: Floor Standing
• Number of Models: 65
• Available Voltages: From 0-16 to 0-4000 Vdc
• Available Currents: From 0-24 to 0-24000 Adc

Other Features

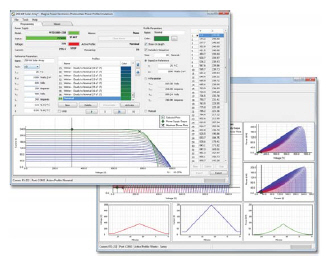

Product Name: PPPE
PPPE DataSheet

Description

• Photovoltaic Power Profile Emulation Software
• Automatically calculates solar array voltage and current profiles based on user-defined parameters.
• Profiles can be sent to a Magna-Power Electronics power supply, to emulate defined characteristics.
• Limitless number of profiles can be emulated and sequenced.

Other Features
