DC Electronic Loads

Rackmount programmable DC Loads
The MagnaLOAD product line is designed to dissipate DC power during development, manufacturing, and validation of DC sources, including: power supplies, DC-DC converters, batteries, solar panels, fuel cells, motors, and electromagnets.

All MagnaLOAD products come standard with front and rear full control (host) USB ports, RS485, dual MagnaLINK™ ports for digital master-slaving, and a 25-pin D-Sub external user I/O connector with configurable pin mappings. LXI TCP/IP Ethernet and IEEE-488 GPIB interfaces are also available. Many different programming environments are supported via Standard Commands for Programmable Instrumentation (SCPI), and provided National Instruments LabVIEW™ and IVI drivers.

CE Mark safety and EMI/EMC certification


Product Name
Description
Other Features

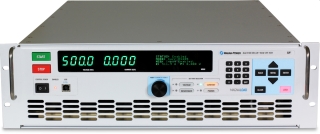

Product Name: ALx Series
ALx DataSheet

ALx Series
ALx DataSheet

Description

  • Air Cooled Linear DC Electronic Load
  • Power Levels 1.25 kW to 2.5 kW+
  • Package Size: 3U Rack-mount
  • Number of Models: 6
  • Max. Voltage Levels From 200 Vdc to 1,000 Vdc
  • Max. Current Levels From 60 Adc to 600 Adc

Other Features

magna power ALx series DC Load

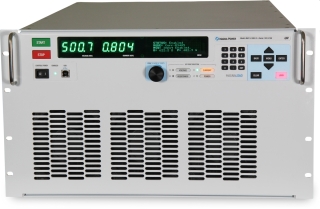

Product Name: ARx Series
ARx DataSheet

ARx Series
ARx DataSheet

Description

  • Air Cooled Active Resistance DC Electronic Load
  • Power Levels 7.5 kW to 45 kW+
  • Package Size: Various
  • Number of Models: 18
  • Max. Voltage Levels From 200 Vdc to 1,000 Vdc
  • Max. Current Levels From 15 Adc to 900 Adc

Other Features

magna power ARx series DC Load

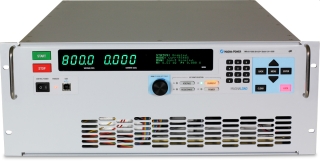

Product Name: WRx Series
WRx DataSheet

WRx Series
WRx DataSheet

Description

  • Water Cooled Active Resistance DC Electronic Load
  • 5kW to 45kW
  • Power Levels 15 kW to 120 kW+
  • Package Size: Various
  • Number of Models: 15
  • Max. Voltage Levels From 200 Vdc to 1,000 Vdc
  • Max. Current Levels From 30 Adc to 2,400 Adc

Other Features

magna power WRx series DC Load
