A complete family of low cost board level bus analyser products for PCI/PCI-X, PMC, CompactPCI, VME and PC/104+. Each analyser includes a comprehensive diagnostic toolset allowing it to be used across all stages of the development lifecycle to quickly aid the solving of hardware, software and system integration problems. Each bus analyser is a single plug-in board that uses the 'AnalyzeIt' Windows Software to capture, display and stimulate bus activity. With built-in features to perform the tracing of bus events, anomaly detection, performance analysis, compliance testing, master functions, stimulus pattern generation, target memory and more!

If you need greater control then you can use the API library and write your own 'C' code to control and obtain results from the analyser. The bus analyser is shipped with all the software, cables and documentation to get you started right out of the box. And if you need some help, unlimited phone support and firmware/software upgrades for one year is included.

The Complete Range of Low Cost Bus Analysers...


Product Name
Description
Other Features

Product Name: PCI850
PCI-X

PCI850
PCI-X

Description

  • PCI 2.2 & PCI-X 1.0 Compliant
  • Sampling Rate up to 133MHz
  • 32/64 bit
  • 3.3V/5V signalling
  • Setup and Hold verification
  • Compliance Testing for PCISIG Checklist
  • Sample trace buffer and target memory options available

Other Features

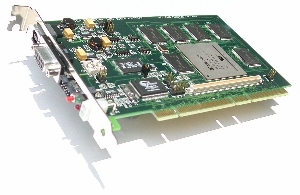

pci850 bus analyser

Product Name: CPCI850
3U CPCI

PCI850
3U CPCI

Description

  • PCI 2.2 Compliant
  • Sampling Rate up to 66MHz
  • 32/64 bit
  • 3.3V/5V signalling
  • Setup and Hold verification
  • Sample trace buffer and target memory options available

Other Features

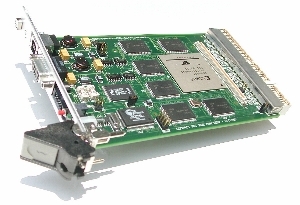

cpci850 bus analyser

Product Name: PMC850
PMC

PCI850
PMC

Description

  • PCI 2.2 & PCI-X 1.0 Compliant
  • Sampling Rate up to 133MHz
  • 32/64 bit
  • 3.3V/5V signalling
  • Setup and Hold verification
  • Compliance Testing for PCISIG Checklist
  • Sample trace buffer and target memory options available

Other Features

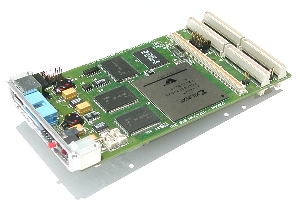

pmc850 bus analyser

Product Name: VME850
6U VME

VME850
6U VME

Description

  • SCT, BLT, MBLT, 2eVME & 2eSST
  • Protocol support
  • State Analysis up to 100MHz
  • Timing Analysis upto 400MHz
  • Sample trace buffer and target memory options available

Other Features

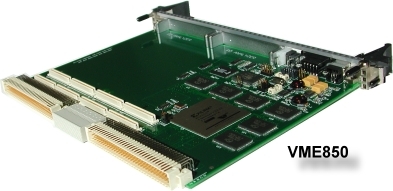

6u vme850 bus analyser

Product Name: PCF850
PC104

PCF850
PC104

Description

  • PCI 2.2 & PCI-X 1.0 Compliant
  • Sampling Rate up to 133MHz
  • 32/64 bit
  • 3.3V/5V signalling
  • Setup and Hold verification
  • Compliance Testing for PCISIG Checklist
  • Sample trace buffer and target memory options available

Other Features

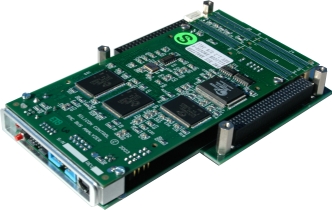

pc104 bus analyser
